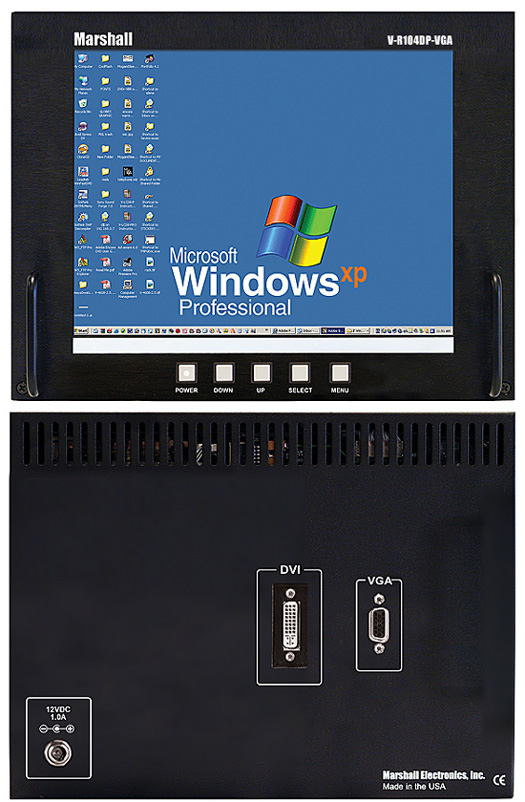

Marshall VR104DPVGA Lcd Monitor marshall v-r104dp-vga

KEY POINTS - VR104DPVGA Marshall TFT-MegaPixel 10.4-Inch Field Monitor with VGA Input:

Large 10.4-inch screen

800x600 Dots (1.44 million RGB pixels)

100% digital processing

5 Year /50,000 backlight life

10 bit Analog to Digital conversion

Wide viewing radius - 130°

600 (cd/m2) luminance

500:1 contrast ratio

Response rates less than 25 ms

Direct access for all adjustments

Durable metal enclosure

Configurable ¼ 20 Mounting

Operates on 12 VDC

AC to DC Power Supply Included

Optical grade polycarbonate screen cover

SUMMARY - Marshall vr104dpvga TFT-MegaPixel 10.4-Inch Field Monitor with VGA Input:

Our portable V-R104DP-VGA is a unique solution for Professional IT, A/V and Multimedia applications. This field durable display is low weight and has low power consumption.

The V-R1042DP-VGA features our Award Wining Digital TFT-MegapixelT system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1040).

DETAILED SPECS - MARSHALL V-R104DP-VGA TFT-MEGAPIXEL 10.4-INCH FIELD MONITOR WITH VGA INPUT:

Display (Viewing Area)

10.4 Inch diagonal (211.2mm w x 158.4mm h)

Resolution (Pixels)

800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)

Dot Pitch

.264mm square pixel l

Brightness (in cd/m)

600

Contrast Ratio

500:1

Inputs

PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D

Dimensions

10.25"w x 8.5" h x 2.5" d (260.4mm x 215.9mm x 38.1mm)

Approx. Weight

4 lbs (1.8 kg)

Power Consumption

App. 50 Watt (5 Amp 12 VDC Class 2 power supply included)
