Marshall V-R201P-AFHD
20 inch Widescreen High Definition LCD Monitor
Our Price $2358.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors |
|
|

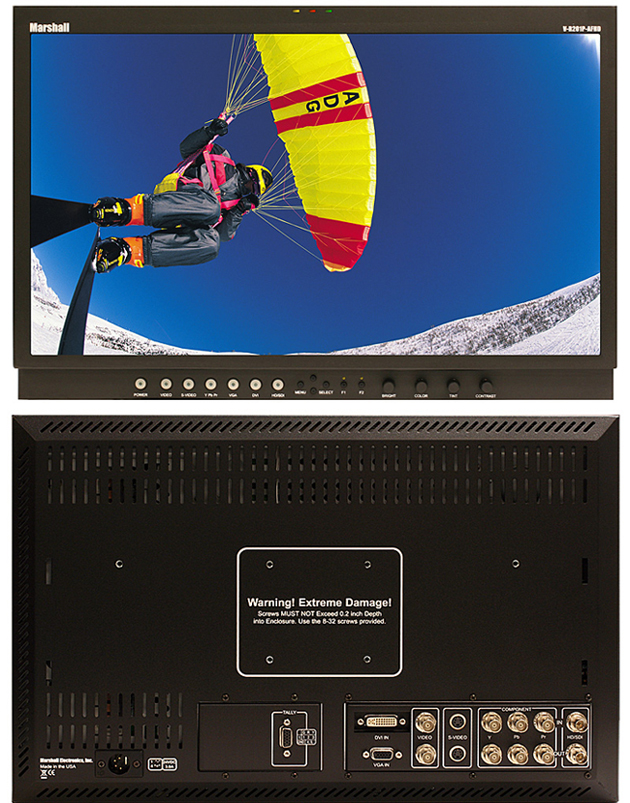

Click For Larger Image |
MARSHALL V-R201P-AFHD 20 inch Widescreen High Definition LCD Monitor
|
OVERVIEW - Marshall vr201pafhd 20 inch Widescreen High Definition LCD Monitor:
The V-R201P-AFHD is a 20” widescreen high definition LCD monitor featuring our completely digital TFT-MegaPixel™ active matrix LCD platform. Available as a rackmount display or with a desktop stand, this monitor is an ideal lightweight replacement for CRTs used in all broadcast and professional video applications. When rack mounted the V-R201P-AFHD is ideal for video wall applications, occupying only 7 RU. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X over-sampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using ourformulated algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel mode.
|
FEATURES - Marshall VR201PAFHD 20 inch Widescreen High Definition LCD Monitor:
- Completely digital 20” TFT-MegaPixel™ active matrix LCD system with over 3.1 million pixels
- 430 cd/m2 brightness
- 600:1 contrast ratio
- 178° all-around viewing angle
- Multi-Format Compatibility:
- Composite Video (NTSC/PAL Auto-Detect)
- S-Video (NTSC/PAL Auto-Detect)
- YPbPr (525, 625, 720, 1080-line
- interlaced and progressive formats)
- SDI(525, 625, 720, 1080-line
- interlaced and progressive formats)
- VGA (Accepts VESA standards)
- DVI (Accepts VESA standards)
- ColorMatch Conversion emulates SMPTE-C/EBU
- color space with custom Color Temperature adjustment
- End-to-End Digital Signal Processing using 10-bit A/D conversion with 4x over-sampling, 5-line super-adaptive 2D comb filtering, and our formulatd motion adaptive interpolation for interlaced images
- Underscan mode, blue-only mode, monochrome mode, H/V delay, screen markers, internal color bars, etc.
- Two user-assignable function buttons on the front-panel allow quick access to numerous settings and features
- Available in two different configurations:
- V-R201P-AFHD (includes rackmount bracket)
- V-R201P-AFHD-DT (includes desktop stand)
|
SPECIFICATIONS - MARSHALL V-R201P-AFHD 20 INCH WIDESCREEN HIGH DEFINITION LCD MONITOR:
|
Screen Size |
20.04” Diagonal |
|
Display Area (h x v) |
17.465” x 9.819” (443.609 x 249.408 mm) |
|
Aspect Ratio |
16:9 Native (4:3/16:9 Modes) |
|
Pixels |
1366 x RGB x 768 |
|
Color Depth |
24-bit (16,777,216 Colors) |
|
Viewing Angle |
178° x 178° |
|
Brightness |
430 cd/m2 |
|
Contrast Ratio |
600:1 |
|
Dot Pitch (h x v) |
0.00425” x 0.0128” (0.108 x 0.324 mm) |
|
Pixel Pitch (h x v) |
0.0128” x 0.0128” (0.324 x 0.324 mm) |
|
Inputs |
S-Video (1 x 4-Pin Mini-DIN) / Composite Video (1 x BNC)
YPbPr (3 x BNC) / HDSDI/SDI (1 x BNC)
VGA (1 x HD-15) / DVI (1 x DVI-I) |
|
Outputs (Active Loop-Through) |
Composite Video (1 x BNC)
S-Video (1 x 4-Pin Mini-DIN)
YPbPr (3 x BNC)
HDSDI/SDI (1 x BNC) |
|
Tally |
3 LEDs (Yellow, Red, Green) |
|
Power Consumption |
3A @ 24VDC (72 W) |
|
Dimensions (w x h x d) |
18.69” x 12.240” x 2.09” |
|
Rack Height |
7 RU |
|
Additional Mounting |
VESA 75 mm |
|
Weight (Monitor Only) |
9 lbs |
|
Operating Temperature |
32°F to 120°F (0°C to 50°C) |
|
Storage Temperature |
-4°F to120°F (-20°C to 50°C) |
|
Compliance |
FCC-Class A, ANSI-63. (Certificates on file) |
Manufacturer Homepage: www.lcdracks.com
|
