Marshall V-R201P-AFHD-DT 20 inch Widescreen High Definition LCD Monitor with Advanced Features and stand

Our Price $2343.99 Including Shipping

Back to Marshall LCD Monitors

KEY POINTS - Marshall vr201pafhddt 20 inch widescreen high definition lcd monitor with advanced features and stand:

Completely digital 20 inch TFT-MegaPixel active matrix LCD system with over 3.1 million pixels

430 cd/m² brightness

600:1 contrast ratio

178° all-around viewing angle

Composite Video (NTSC/PAL Auto-Detect)

S-Video (NTSC/PAL Auto-Detect)

YPbPr (525, 625, 720, 1080-line interlaced and progressive formats)

SDI (525, 625, 720, 1080-line interlaced and progressive formats)

VGA (Accepts VESA standards)

DVI (Accepts VESA standards)

End-to-End Digital Signal Processing using 10-bit A/D conversion with 4x oversampling, 5-line super-adaptive 2D comb filtering, and our formulated motion adaptive interpolation for interlaced images

Underscan mode, blue-only mode, monochrome mode, H/V delay, screen markers, internal color bars, etc.

Two user-assignable function buttons on the front-panel allow quick access to numerous settings and features

Available in two different configurations:

V-R201P-AFHD (includes rackmount bracket)

V-R201P-AFHD-DT (includes V-ST20 desktop stand)

SUMMARY - Marshall vr201pafhddt 20 inch Widescreen High Definition LCD Monitor with Advanced Features and stand:

The Marshall V-R201P-AFHD-DT is a 20 inch widescreen high definition LCD monitor featuring our completely digital TFT-MegaPixel active matrix LCD platform. Available as a rackmount display or with a desktop stand, this monitor is an ideal lightweight replacement for CRTs used in all broadcast and professional video applications. When rack mounted, the V-R201P-AFHD is ideal for video wall applications, occupying only 7 RU. Emulation of SMPTE-C/EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4X oversampling and 5-line super-adaptive 2D comb filtering of composite signals. Deinterlacing is performed using our formulated algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, underscan mode, blue-only mode, monochrome mode, H/V delay, and Pixel-to-Pixel mode.

DETAILED SPECS - MARSHALL V-R201P-AFHD-DT 20 INCH WIDESCREEN HIGH DEFINITION LCD MONITOR WITH ADVANCED FEATURES AND STAND:

SPECIFICATIONS
Screen Size	20.04” Diagonal
Display Area (h x v)	17.465” x 9.819” (443.609 x 249.408 mm)
Aspect Ratio	16:9 Native (4:3/16:9 Modes)
Pixels	1366 x RGB x 768
Color Depth	24-bit (16,777,216 Colors)
Viewing Angle	178° x 178°
Brightness (in cd/m²)	430
Contrast Ratio	600:1
Dot Pitch (h x v)	0.00425” x 0.0128” (0.108 x 0.324 mm)
Pixel Pitch (h x v)	0.0128” x 0.0128” (0.324 x 0.324 mm)
Inputs	S-Video (1 x 4-Pin Mini-DIN) / Composite Video (1 x BNC) YPbPr (3 x BNC) / HDSDI/SDI (1 x BNC) VGA (1 x HD-15) / DVI (1 x DVI-I)
Outputs (Active Loop-Through)	Composite Video (1 x BNC) S-Video (1 x 4-Pin Mini-DIN) YPbPr (3 x BNC) HDSDI/SDI (1 x BNC)
Tally	3 LEDs (Yellow, Red, Green)
Power Consumption	3A @ 24VDC (72 W)
Dimensions (w x h x d)	18.69” x 12.240” x 2.09”
Rack Height	7 RU
Additional Mounting	VESA 75 mm
Weight (Monitor Only)	9 lbs
Operating Temperature	32°F to 120°F (0°C to 50°C)
Storage Temperature	-4°F to120°F (-20°C to 50°C)
Compliance	FCC-Class A, ANSI-63. (Certificates on file)

Manufacturer Page: www.lcdracks.com

marshall vr201pafhddt lcd monitor display v-r201p-afhd-dt

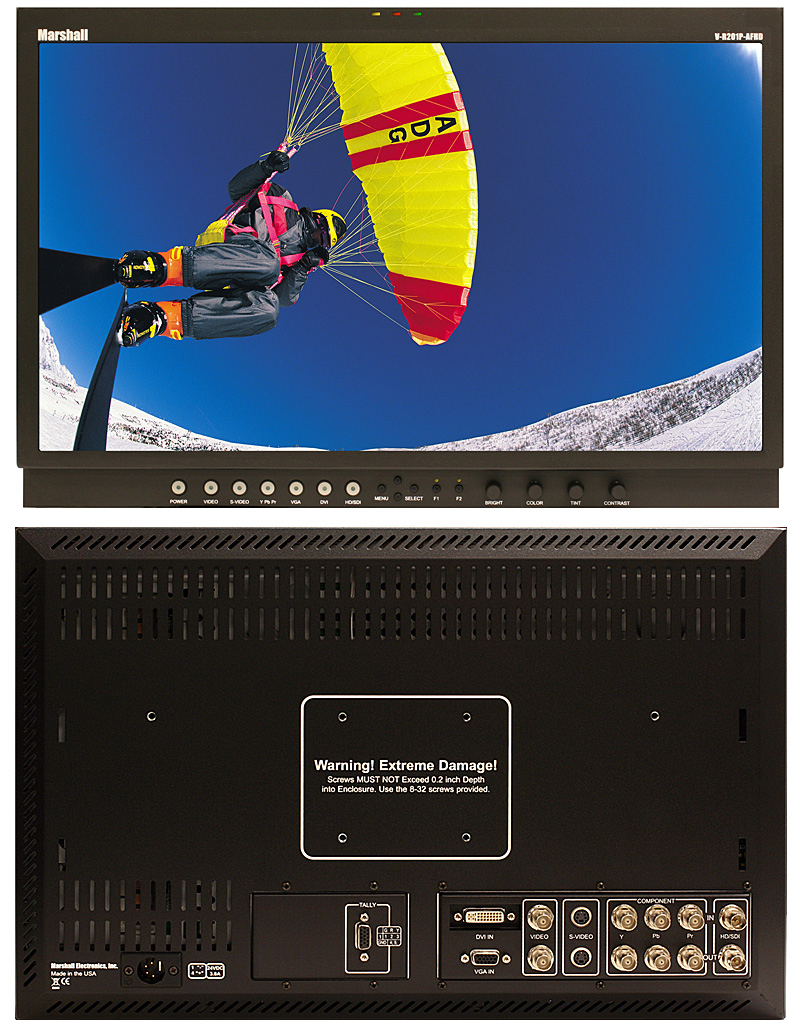

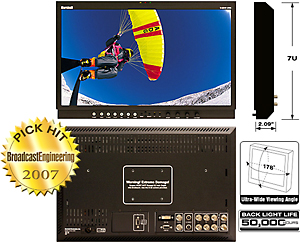

Click for Larger Image
