Marshall V-R70P-HDA-AB 7 inch HD/SD 1.2 TFT-MegaPixel Standalone / Video Assist Monitor with Analog Inputs

Our Price $1320.99 Including Shipping

Back to Marshall LCD Monitors

KEY POINTS - Marshall vr70phdaab 7 inch hd/sd 1.2 tft-megapixel standalone / video assist monitor with analog inputs:

Durable metal enclosure

"V" Mount battery adapter included

Runs 4 to 6 hours on optional 50WH battery

High Resolution 7-inch widescreen 800 x 480 Dots with 1.2 million pixels

Optical-grade polycarbonate screen cover with Anti-reflective/Anti-glare coating

100% digital processing

Analog signals converted to 10-bit digital

High resolution scaling of all images

Wide viewing radius

380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions

400:1 ratio of contrast between black and white luminance values

4:3 and 16:9 screen aspect ratios

Automatic NTSC/PAL format detection

Standard inputs:

Composite Video PAL/NTSC with loop output

Component YPbPr HD/SD with loop-out

4-Pin XLR D.C. power jack

Easy-to-see three color tally indicators

Built-in Color Bars

Blue Screen for color adjustment

Adjustment Settings Memory

Includes 1 (one) -20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)

Includes universal voltage Class-2 power supply

Optional rack mount kit

SUMMARY - Marshall vr70phdaab 7 inch HD/SD 1.2 TFT-MegaPixel Standalone / Video Assist Monitor with Analog Inputs:

The Marshall V-R70P-HDA-AB features our completely Digital TFT-MegaPixel high resolution LCD screen with 1.2 million pixels, V-Mount battery adapter, 4-pin XLR power jack, and optical-grade polycarbonate screen protection. Analog signals are digitized using advanced 10-bit processing with 4x oversampling and adaptive 5-line comb filter. Video is scaled to fit onscreen in the highest resolution using a state-of-the-art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to produce the best images available.

DETAILED SPECS - MARSHALL V-R70P-HDA-AB 7 INCH HD/SD 1.2 TFT-MEGAPIXEL STANDALONE / VIDEO ASSIST MONITOR WITH ANALOG INPUTS:

SPECIFICATIONS
Display (Viewing Area)	7" (6.14" × 3.27")
Resolution (Pixels)	800 H × RGB × 480 V

Manufacturer Page: www.lcdracks.com

marshall vr70phdaab lcd monitor display v-r70p-hda-ab

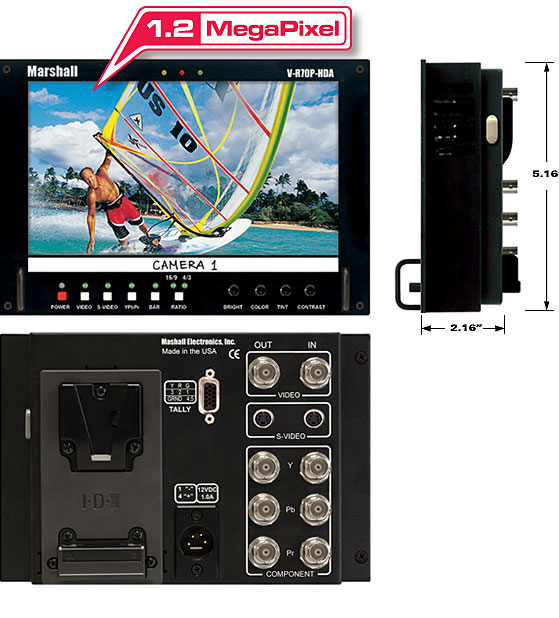

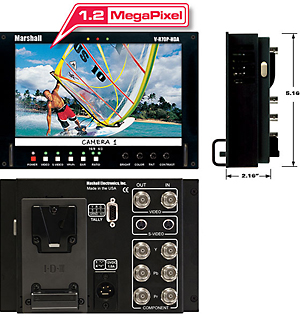

Click for Larger Image
