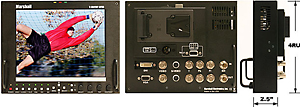

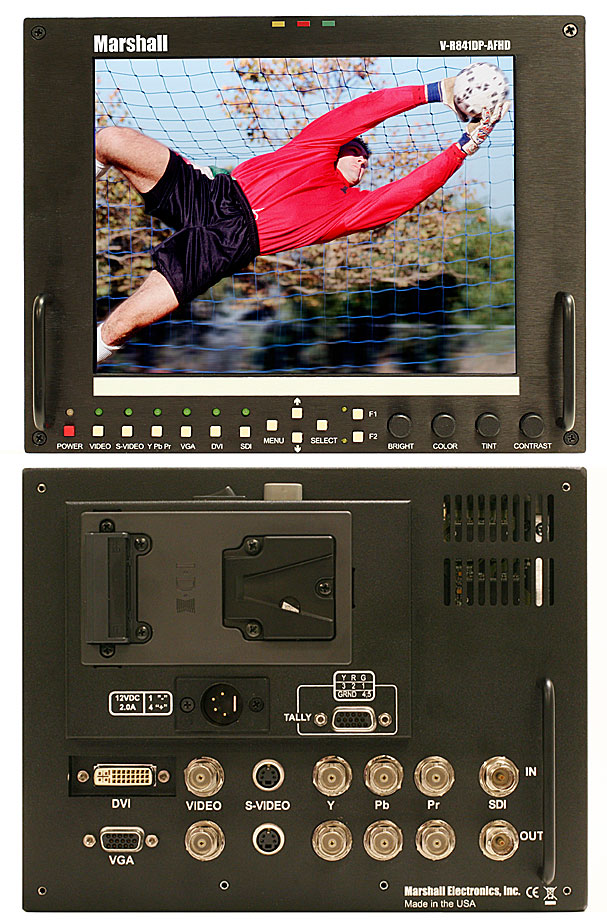

Marshall V-R841DP-AFHD 8.4 inch High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features

Our Price $2999.99 Including Shipping

Back to Marshall LCD Monitors

KEY POINTS - Marshall vr841dpafhd 8.4 inch high definition monitor with all digital / analog hd/sd inputs and advanced function features:

High Definition 8.4-inch 2.4 TFT-MegaPixel screen with 1024 x 768 resolution

Over 16.7 million colors

V-Mount battery adapter included

100% digital processing

High resolution scaling of all images

CRT-style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen

400 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions

400:1 ratio of contrast

Pixel-to-Pixel native resolution scaling

Extended Temperature Rating

Blue Gun for color adjustment

Zoom function

Direct access for all adjustments

HDSDI (all formats)

SDI (ITU-R BT601 format)

Composite Video PAL/NTSC

S-Video (Y/C)

Component Analog HD / SD

SXGA (1280 x 1024) computer display

DVI-I (all formats)

Works with all SMPTE/ITU analog and serial digital production formats and frame rates

Easy-to-see three color tally indicators

Built-in Color Bars

Adjustment Settings Memory

Calibrated Color Temperature and Gamma

Durable Metal Enclosure

Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)

Includes universal voltage Class-2 power supply

Optional Rack Mount Kit/ Desktop Stand available

SUMMARY - Marshall vr841dpafhd 8.4 inch High Definition Monitor with all Digital / Analog HD/SD Inputs and Advanced Function Features:

The Marshall V-R841DP-AFHD is an 8.4 inch high definition LCD monitor featuring our completely digital TFT-MegaPixel active matrix platform. Weighing only 3.4 pounds, this monitor is ideal as a lightweight, high-resolution viewfinder or focus-assist monitor. The V-R841DP-AFHD can also be rack-mounted with an optional 4RU adapter or used in a desktop configuration using an optional desktop stand. Emulation of SMPTE-C / EBU color and adjustable color temperature enable the most precise color representation possible. Our proprietary digital signal processing features 10-bit A/D conversion of all analog signals, with 4x oversampling and 5-line super-adaptive 2D comb filtering of composite signals. De-interlacing is performed using advanced algorithms with motion adaptive interpolation. Multi-format compatibility accommodates virtually all video formats including NTSC/PAL, 480i/p, 720p, and 1080i/p standards. VGA and DVI inputs accept VESA standards, allowing the display to be used as a computer monitor. Advanced features include aspect ratio settings, a variety of screen markers, under-scan mode, blue-only mode, monochrome, H/V delay, and Pixel-to-Pixel mode.

DETAILED SPECS - MARSHALL V-R841DP-AFHD 8.4 INCH HIGH DEFINITION MONITOR WITH ALL DIGITAL / ANALOG HD/SD INPUTS AND ADVANCED FUNCTION FEATURES:

SPECIFICATIONS
Display (Viewing Area)	8.4 Inch diagonal (6.3" x 5.13") (170.469mm W x 127.872mm H)
Resolution (Pixels)	1024 H × RGB x 768 V (2.4 million RGB pixels) (16.7 Million colors)
Dot Pitch	0.0555 (H) x 0.1665 (V) mm
Brightness (in cd/m²)	400
Contrast Ratio	400:1
System	NTSC/PAL with automatic recognition
Screen Formats	640 x 480 - 59.94i, 60i, 29.97p, 30p, 59.94p, 60p 1280 x 720 – 23.97p, 24p, 25p, 29.97p, 30p, 59.94p, 60p 1920 x 1080 – 23.97p, 24p, 25p, 29.97p, 30p, 50i, 59.94i, 60i
Inputs	HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, YPbPr) 75 Ohm BNC for HDSDI/SDI (NTSC/PAL) 75 Ohm 3 BNCs for YPbPr / YCbCr DVI connector for DVI-I BNC for Composite Video (NTSC/PAL) 75 Ohm with AGC 4-Pin Mini Din for S-Video (Y/C)
Dimensions	9.00”W x 7.00”H x 1.87”D
Approx. Weight	3.4 lbs
Power Consumption	12 VDC, 2.0Amps max - UL Class 2
APPLICATIONS
. Video assist . Talent Monitor . Signal confidence monitor

Manufacturer Page: www.lcdracks.com

marshall vr841dpafhd lcd monitor display v-r841dp-afhd
