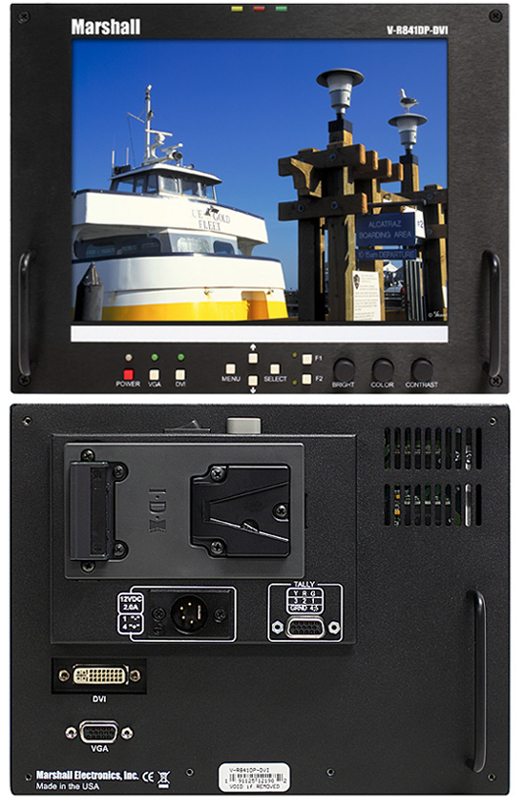

Marshall VR841DPDVI LCD Monitor marshall vr841dpdvi

KEY POINTS - VR841DPDVI Marshall 2.4 MegaPixel 8.4-Inch DVI LCD Field Monitor:

Easy-to-view, 8.4-inch High Definition resolution screen

2.4 MegaPixel screen with 1024 x 768 resolution and 100% digital processing

5 Year / 50,000 backlight life

Wide viewing radius: 170 Degrees

400 cd/m² luminance and 400:1 contrast ratio

Direct access for all adjustments

Durable metal enclosure

Configurable ¼ 20 Mounting

Operates on 12 VDC

AC-to-DC Power Supply Included

Optical grade polycarbonate screen cover

SUMMARY - Marshall vr841dpdvi 2.4 MegaPixel 8.4-Inch DVI LCD Field Monitor:

The Marshall 8.4-inch V-R841DP-DVI LCD monitor is a unique solution for Professional IT, A/V and Multimedia applications. This field-durable display is low in weight and has low power consumption. The V-R841DP-DVI features Award Winning Digital TFT-MegaPixel system. Signals are input via a Female HD-15 connector for computer signals up to SXGA resolution (1280x1040) and DVI-D. RGB signals are digitized using advanced 10-bit processing and all accepted resolutions are scaled to fit on each screen in the highest resolution using our proprietary program and state-of-the-art LSI.

DETAILED SPECS - MARSHALL VR841DPDVI 2.4 MEGAPIXEL 8.4-INCH DVI LCD FIELD MONITOR:

Display
(Viewing Area)

8.4-Inch (6.14 H x 3.27 V inches)
(170.496mm x 127.872mm)

Resolution (Pixels)

1024 H x RGB x768 V (2.4 million RGB pixels)
(16.7 Million colors)

Dot Pitch

0.0555 mm (W) x 0.1665 (H) / 0.1665 Square pixel

Brightness
(in cd/m²)

400

Contrast Ratio

400:1

Inputs

1 PC-SXGA (1280 x 1024) via HD-15 Female Connector and 1 DVI-D

Dimensions
(W x H x D)

9 x 6.875 x 2.5 (228.6mm x 174.6mm x 38.1mm)

Approx. Weight

3.3 lbs (1.5 kg)

Power Consumption

App. 20 Watt (3 Amp 12 VDC Class 2 power supply included)
