Marshall V-R841P-AFHD
Stand - Alone 8.4 inch HD/SD Monitor with Advanced Features
Our Price $3018.90 Including 3 - 5 Day Shipping
Back to
Marshall LCD Monitors |
|
|

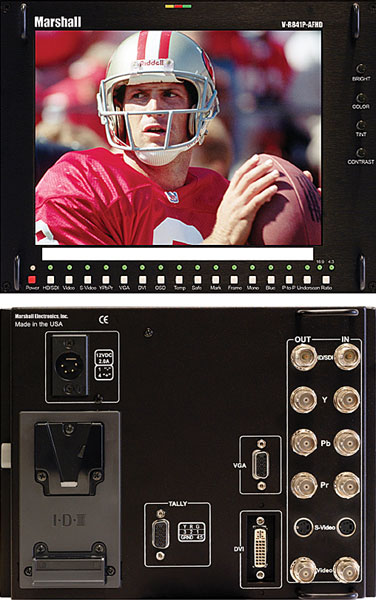

Click For Larger Image
|
OVERVIEW - Marshall vr841pafhd Stand - Alone 8.4 inch HD/SD Monitor with Advanced Features:
The V-R841P-AFHD features our Completely Digital TFT-MegapixelT high definition LCD screen with 2.4 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion. Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolation with precision Gamma correction to product the best images available. Additional features include, Pixel-to-PixelT native resolution scaling, setup memory, Zoom function, 6 Frame Marker Overlays, Blue Gun, and direct access for all adjustment and selection functions
|
FEATURES - Marshall VR841PAFHD Stand - Alone 8.4 inch HD/SD Monitor with Advanced Features:
Durable metal enclosure
High Definition 8.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution
"V" Mount battery adapter included Runs 4 to 6 hours on optional 80WH battery
Optical grade polycarbonate screen cover with Antireflective/Antiglare coating
100% digital processing
Analog signals converted to 10 bit digital
High resolution scaling of all images
Pixel-to-PixelT native resolution scaling
CRT style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen.
400 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions.
400:1 ratio of contrast between black and white luminance values with response rates less than 25 ms results in excellent quality for moving images.
4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
Blue Gun for color adjustment
Zoom function
Standard inputs:
HDSDI (all formats)
SDI (ITU-R BT601 format)
Composite Video PAL/NTSC
Y/C (S-Video)
Component Video YPrPb
VGA to SXGA computer display
DVI-I
Works with all SMPTE/ITU analog and serial digital production formats and frame rates
Easy to see three color tally indicators
Built in Color Bars
Adjustment Settings Memory
Calibrated Color Temperature and Gamma
Includes Ό-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
Includes universal voltage Class-2 power supply
Optional Rack Mount Kit
|
SPECIFICATIONS - MARSHALL V-R841P-AFHD STAND - ALONE 8.4 INCH HD/SD MONITOR WITH ADVANCED FEATURES:
| Number of Screens |
1 with Antiglare surface treatment |
| Display (Viewing Area) |
8.4" (6.14"H × 3.27"V) (170.496mm x 127.872mm) |
| Resolution ( RGB Dots) |
1024H×RGBx768V (2.4 million RGB pixels) (16.7 Million colors) |
| Viewing Angles |
170° H x 170° V |
| Dot Pitch / Pixel Pitch |
0.0555 mm (W) x 0.1665 (H) / 0.1665 Square pixel |
| Contrast Ratio |
400:1 |
| Pixel Response |
< 25ms |
| Brightness |
400 cd/m² |
| System |
NTSC/PAL auto recognition for standard definition signals |
