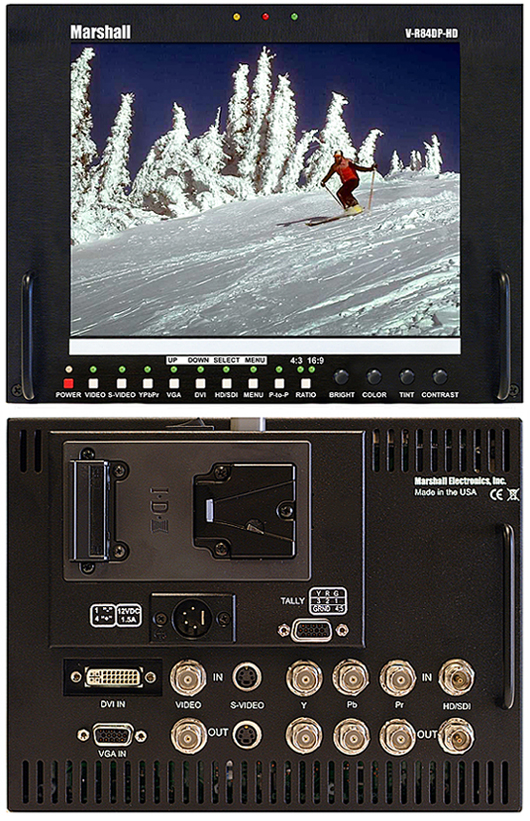

Marshall VR84DPHD Lcd Monitor marshall v-r84dp-hd

KEY POINTS - VR84DPHD Marshall TFT-MegaPixelT 8.4-Inch Field Monitor with Multiformat Inputs:

High Resolution 8.4-inch screen

800x600 Dots (1.44 million RGB pixels)

Hyper Process for Interlace Images

Match Color Conversion

100% digital processing

5 Year /50,000 backlight life

10 bit Analog to Digital conversion

Wide viewing radius - 130°

500 (cd/m2) luminance

500:1 contrast ratio

Response rates less than 25 ms

4:3 and 16:9 screen aspect ratios

Direct access for all adjustments

Three color tally indicators

On Screen Display (OSD)

Blue Screen for color adjustment

Color Temperature adjustment

Underscan and HV Delay

Adjustment Settings Memory

Optical grade polycarbonate screen cover

Standard inputs:

HDSDI/SDI (ITU-BR601/SMPTE-259M,292M)
Component analog (YCrCb) (YPrPb) for virtually all HD and SD formats
Composite Video auto PAL/NTSC recognition
S-Video
DVI Digital and Analog
PC up to XGA (1024 x 768)
Loop through of all video signals

Durable metal enclosure

Configurable ¼ 20 Mounting

"V" Mount battery adapter included

Runs 4 to 6 hours on optional battery

Power Supply Included

SUMMARY - Marshall vr84dphd TFT-MegaPixelT 8.4-Inch Field Monitor with Multiformat Inputs:

Our V-R84DP-HD is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Wining Digital TFT-MegapixelT system with 1.44 million pixels plus Hyper Process for interlace image motion compensation.

Match Color Conversion

DETAILED SPECS - MARSHALL V-R84DP-HD TFT-MEGAPIXELT 8.4-INCH FIELD MONITOR WITH MULTIFORMAT INPUTS:

Display (Viewing Area)

8.4 Inch diagonal (170.4mm w x 127.8mm h)

Resolution (Pixels)

800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)

Dot Pitch

.213mm square pixel

Brightness (in cd/m)

500

Contrast Ratio

500:1

System

NTSC/PAL with automatic recognition

Inputs

HDSDI/SDI, Composite , S-Video (Y/C), Component, DVI, PC-XGA (1024 x 768)

Dimensions

9"w x 6.875" h x 2.5" d (228.6mm x 174.6mm x 38.1mm)

Approx. Weight

3.3 lbs (1.5 kg)

Power Consumption

App. 36 Watt (5 Amp 12 VDC Class 2 power supply included)
