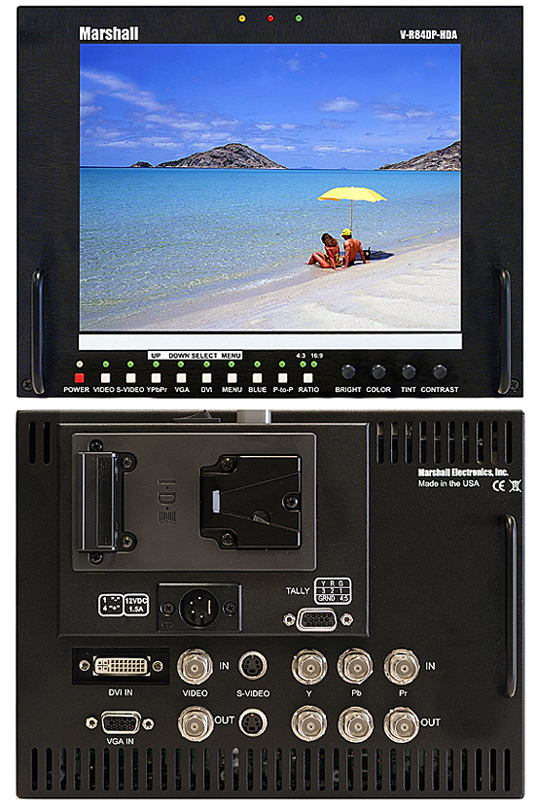

KEY POINTS - VR84DPHDA Marshall TFT-MegaPixel 8.4-Inch Field Monitor with Multi-format Inputs:
High Resolution 8.4-inch screen
800x600 Dots (1.44 million RGB pixels)
Hyper Process for Interlace Images
Match Color Conversion
100% digital processing
5 Year / 50,000 hours backlight life
10-bit Analog to Digital conversion
Wide viewing radius - 130°
500 (cd/m2) luminance
500:1 contrast ratio
Response rates less than 25 ms
4:3 and 16:9 screen aspect ratios
Direct access for all adjustments
Three color tally indicators
On Screen Display (OSD)
Blue Screen for color adjustment
Color Temperature adjustment
>
Underscan and HV Delay
Adjustment Settings Memory
Optical grade polycarbonate screen cover
Standard inputs:
Component analog (YCbCr) (YPbPr) for virtually all HD and SD formats
Composite Video auto NTSC/PAL recognition
S-Video
DVI Digital and Analog
PC - up to XGA (1024 x 768)
Loop-through of all video signals
Durable metal enclosure
Configurable ¼ 20 Mounting
"V" Mount battery adapter included
Runs 4 to 6 hours on optional battery
Power Supply Included
SUMMARY - Marshall vr84dphda TFT-MegaPixel 8.4-Inch Field Monitor with Multi-format Inputs:
Our V-R84DP-HDA is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Winning Digital TFT-MegaPixelTM system with 1.44 million pixels plus Hyper Process for interlace image motion compensation.
Inputs are provided for HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to XGA resolution (1024 x 768). Analog signals are digitized using a 10-bit process and images are scaled to fit on-screen in high resolution using our state-of-the-art LSI with 4x4 pixel interpolation and Match Color Conversion to emulate SMPTE-C phosphor of a CRT. Standard features include V-Mount battery adapter, 4-pin XLR power jack, and optical grade polycarbonate screen protection.
DETAILED SPECS - MARSHALL V-R84DP-HDA TFT-MEGAPIXEL 8.4-INCH FIELD MONITOR WITH MULTI-FORMAT INPUTS:
Display (Viewing Area)
8.4 Inch diagonal (170.4mm w x 127.8mm h)
Resolution (Pixels)
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
Dot Pitch
.213mm square pixel
Brightness
500 cd/m²
Contrast Ratio
500:1
System
NTSC/PAL with automatic recognition
Inputs
Composite, S-Video (Y/C), Component, DVI, PC-XGA (1024 x 768)
Dimensions
9"W x 6.875"H x 2.5"D (228.6mm x 174.6mm x 38.1mm)
Approx.
Weight
3.3 lbs (1.5 kg)
Power
Consumption
App. 36 Watt (5 Amp 12 VDC Class 2 power supply included)
