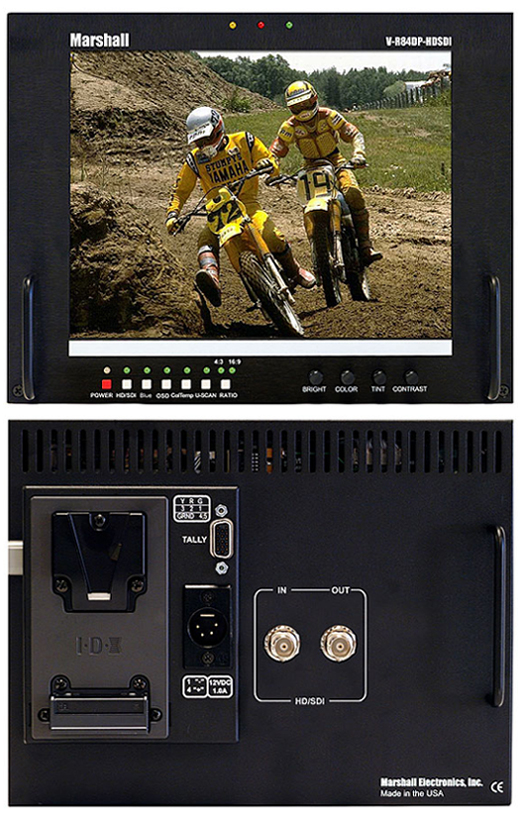

Marshall VR84DPHDSDI Lcd Monitor marshall v-r84dp-hdsdi

KEY POINTS - VR84DPHDSDI Marshall TFT-MegaPixel 8.4-Inch Field Monitor for HDSDI/SDI:

High Resolution 8.4-inch screen

800x600 Dots (1.44 million RGB pixels)

Hyper Process for Interlace Images

Match Color Conversion

100% digital processing

5 Year /50,000 backlight life

10 bit Analog to Digital conversion

Wide viewing radius - 130°

500 (cd/m2) luminance

500:1 contrast ratio

Response rates less than 25 ms

4:3 and 16:9 screen aspect ratios

Direct access for all adjustments

Three color tally indicators

On Screen Display (OSD)

Blue Screen for color adjustment

Color Temperature adjustment

Adjustment Settings Memory

Standard inputs:

HDSDI/SDI (ITU-BR601/SMPTE-259/292M)
Re-clocked and Shaped Loop Output

Accepts all single link HDSDI/SDI formats

Optical grade polycarbonate screen cover

Durable metal enclosure

Configurable ¼ 20 Mounting

"V" Mount battery adapter included

Runs 4 to 6 hours on optional battery

Power Supply Included

SUMMARY - Marshall vr84dphdsdi TFT-MegaPixel 8.4-Inch Field Monitor for HDSDI/SDI:

Our budget model, V-R84DP-HDSDI, features our award winning TFT-MegaPixelT system and is a direct replacement for 8 and 9-inch CRTs used in broadcast and professional video applications. This cost effective model has a much smaller footprint than our competitors' products, in addition to its low weight and power consumption when compared to similar CRT products.

This model is designed to display HDSDI/SDI (High Definition Serial Digital Interface) sources. The signal is re-clocked and shaped as a loop output.

Our Hyper Process for motion compensation is employed to provide smooth motion of interlace images. High Definition and Standard Definition images are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.

DETAILED SPECS - MARSHALL V-R84DP-HDSDI TFT-MEGAPIXEL 8.4-INCH FIELD MONITOR FOR HDSDI/SDI:

Display (Viewing Area)

8.4 Inch diagonal (170.4mm w x 127.8mm h)

Resolution (Pixels)

800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)

Dot Pitch

.213mm square pixel

Brightness (in cd/m)

500

Contrast Ratio

500:1

System

NTSC/PAL with automatic recognition

Inputs per panel

HDSDI/SDI

Dimensions

9"w x 6.875" h x 2.5" d (228.6mm x 174.6mm x 38.1mm)

Approx. Weight

3.3 lbs (1.5 kg)

Power Consumption

App. 36 Watt (5 Amp 12 VDC Class 2 power supply included)
