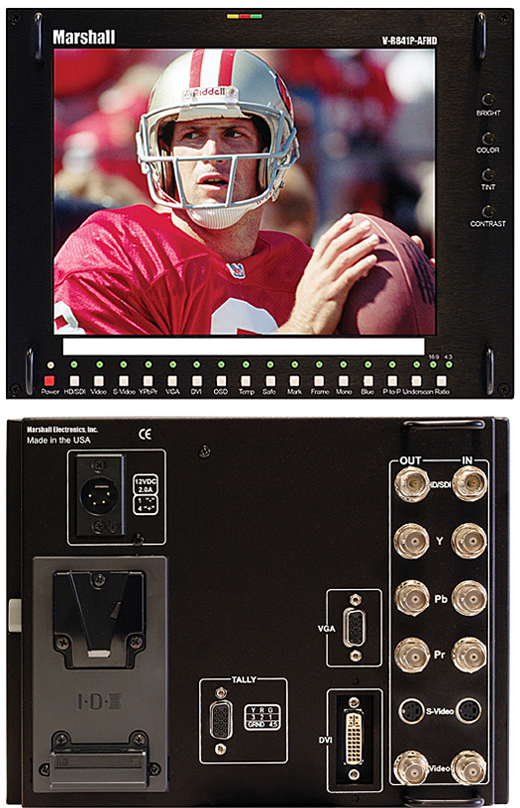

KEY POINTS - VR84DPSD Marshall TFT-MegaPixelT 8.4-Inch Field Monitor with Multiformat Inputs:
High Resolution 8.4-inch screen
800x600 Dots (1.44 million RGB pixels)
Hyper Process for Interlace Images
Match Color Conversion
100% digital processing
5 Year /50,000 backlight life
10 bit Analog to Digital conversion
Wide viewing radius - 130°
500 (cd/m2) luminance
500:1 contrast ratio
Response rates less than 25 ms
4:3 and 16:9 screen aspect ratios
Direct access for all adjustments
Three color tally indicators
On Screen Display (OSD)
Blue Screen for color adjustment
Color Temperature adjustment
Underscan and HV Delay
Adjustment Settings Memory
Optical grade polycarbonate screen cover
Standard inputs:
SDI (ITU-BR601/SMPTE-259M)
Component analog (YCrCb) (YPrPb) for virtually all HD and SD formats
Composite Video auto PAL/NTSC recognition
S-Video
DVI Digital and Analog
PC up to XGA (1024 x 768)
Loop through of all video signals
Durable metal enclosure
Configurable ¼ 20 Mounting
"V" Mount battery adapter included
Runs 4 to 6 hours on optional battery
Power Supply Included
SUMMARY - Marshall vr84dpsd TFT-MegaPixelT 8.4-Inch Field Monitor with Multiformat Inputs:
Our V-R84DP-SD is the perfect alternative to 8 and 9-inch CRTs used in broadcast, professional video and multimedia applications. This model includes our Award Wining Digital TFT-MegapixelT system with 1.44 million pixels plus Hyper Process for interlace image motion compensation.
Inputs are provided for SDI, HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to XGA resolution (1024 x 768). Analog signals are digitized using a 10 bit process and images are scaled to fit on screen in high resolution using our state of the art LSI with 4x4 pixel interpolation and Match Color Conversion to emulate SMPTE-C phosphor of a CRT. Standard features include V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection.
DETAILED SPECS - MARSHALL V-R84DP-SD TFT-MEGAPIXELT 8.4-INCH FIELD MONITOR WITH MULTIFORMAT INPUTS:
Display (Viewing Area)
8.4 Inch diagonal (170.4mm w x 127.8mm h)
Resolution (Pixels)
800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
