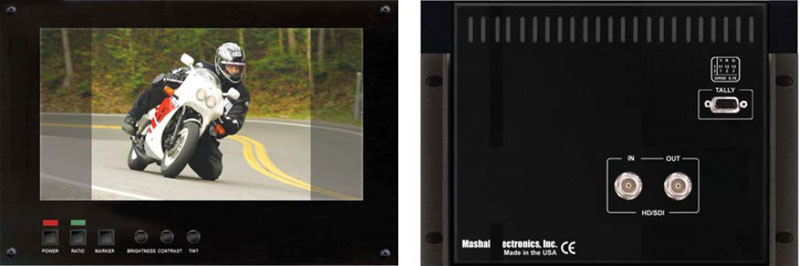

Marshall V-R901DP-TE Single High Definition 9.0” 800 x RGB x 480 monitor set with HDSDI inputs

Our Price $5550.00 Including 3 - 5 Day Shipping

Back to Marshall LCD Monitors

OVERVIEW - Marshall vr901dpte Single High Definition 9.0” 800 x RGB x 480 monitor set with HDSDI inputs:

Our budget model, V-R901DP-TE, features our award winning TFT-MegaPixel system and is a cost effective solution for many broadcast and
professional video applications. Ready to rack mount in 4RU, this cost effective model provides up to 20% more screen when compared to our
competitors’ LCD and CRT models that occupy the same space. This is in addition to the benefi ts of low weight and power consumption when
compared to similar CRT products.

Inputs are provided for a single HDSDI/SDI source on each of the screens. Our Hyper Process for motion compensation is employed to
provide smooth motion of interlace images. All screen formats are scaled to fi t on screen in the highest resolution using our proprietary program
and state of the art LSI with CRT Color Match conversion to emulate SMPTE-C phosphor of a CRT.


FEATURES - Marshall VR901DPTE Single High Definition 9.0” 800 x RGB x 480 monitor set with HDSDI inputs:

• High Definition 9.0” 1.2 MegaPixel screen with 800 x RGB x 480 resolution
• 100% digital processing (10 bit)
• 5 Year /50,000 hour backlight life
• High resolution scaling
• Wide viewing radius - 130° horizontal and vertical provides superior visibility
• 400 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 500:1 ratio of contrast between black and white luminance values with response rates less than 25 ms results in excellent quality for moving images
• Direct access for adjustments of brightness and contrast
• Two large color tally indicators

SPECIFICATIONS - MARSHALL V-R901DP-TE SINGLE HIGH DEFINITION 9.0” 800 X RGB X 480 MONITOR SET WITH HDSDI INPUTS:

• Display (Viewing Area) 9.0 Inch diagonal (7.75” x 4.65”) (196.8mm W x 118.08mm H)
• Resolution (Pixels) 800 x RGB x 480 (262,144 colors)
• Dot Pitch 0.082 (H) x 0.246 (V) mm
• Brightness (in cd/m˛) 400 cd/m˛
• Contrast Ratio 500:1
• Inputs per panel 1 HDSDI/SDI Multirate
• Dimensions 9.6” w x 8.67” h x 1.5” d (485.7mm x 220.22mm x 38.1mm)
• Approx. Weight 3.6 lbs (1.62 kg)
• Power Consumption App. 50Watt (5Amp 12 VDC Class 2 power supply included)

Manufacturer Homepage: www.lcdracks.com
