Marshall V-LCD2.5-P-03 2.5 inch Active Matrix Color LCD Panel

Our Price $174.99 Including 3 - 5 Day Shipping

Back to Marshall LCD Panels

Click For Larger Image

OVERVIEW - Marshall vlcd2.5p03 2.5 inch Active Matrix Color LCD Panel:

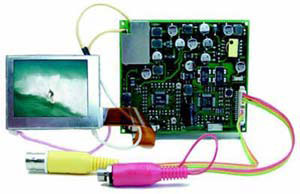

The Marshall V-LCD2.5-P-03 miniature LCD panel has NTSC/PAL auto recognition and work on as little as 6VDC. It comes with a separate control board that has a coaxial connector for power and a BNC attached. Their very small and compact design makes them ideal for applications where only small spaces are available.

FEATURES - Marshall VLCD2.5P03 2.5 inch Lcd Panel:

• Display (Viewing Area) 2.5" (1.97 × 1.48)
• Resolution (Pixels) 480H × 234V
• Brightness 250 cd/m²
• System NTSC/PAL

SPECIFICATIONS - MARSHALL V-LCD2.5-P-03 LCD PANEL:

• Display (Viewing Area) 2.5" (1.97 × 1.48)
• Resolution (Pixels) 480H × 234V
• Dot Pitch 0.105mm × 0.161mm
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto detection
• Dimensions 2.42"W × 1.94"H × 0.26"D
• Power Consumption 6-12 VDC, 400mA

Manufacturer Homepage: www.lcdracks.com
