Marshall V-LCD7-WPR 7 inch 16:9 Wide Screen LCD Panel

Our Price $439.99 Including 3 - 5 Day Shipping

Back to Marshall LCD Panels

Click For Larger Image

OVERVIEW - Marshall vlcd7wpr 7 inch 16:9 Wide Screen LCD Panel:

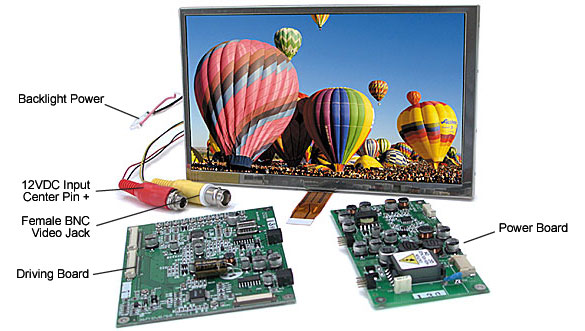

The Marshall V-LCD7-WPR is a high resolution 7"(measured diagonally) wide screen (16:9) LCD panel. With brightness of 400 cd/m2 it will provide outstanding displays in bright ambient lighting conditions. The module includes connections for composite video and power and offers a full compliment of features. User Control Interface PCB (Driving Board) and Power PCB with interconnect cables included.

FEATURES - Marshall VLCD7WPR 7 inch Lcd Panel:

• Display (Viewing Area) 7" (6.07"W x 3.43"H )
• Resolution (Pixels) 1440H × 234V
• Brightness 400 cd/m²
• System NTSC/PAL

SPECIFICATIONS - MARSHALL V-LCD7-WPR LCD PANEL:

• Display (Viewing Area) 7" (6.07"W x 3.43"H )
• Resolution (Pixels) 1440H × 234V
• Dot Pitch 0.107mm × 0.370mm
• Brightness (in cd/m²) 400 cd/m²
• System NTSC/PAL auto detection
• Viewing Angle (degree) Top/Down/Left/Right 30/60/60/60 (min)
• Dimensions 6.5"W x 3.9"H x 0.27"D
• Dimensions (Driving Board) 2.79"W x 2.79"H
• Dimensions (Power Board) 1.73"W x 2.79"H
• Power Consumption <4 watt
• Weight 6.7 oz

Manufacturer Homepage: www.lcdracks.com
