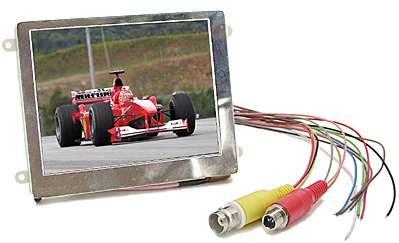

Marshall V-LCD4-P-02 4 inch Active Matrix LCD Panel

Item Currently Unavailable

Back to Marshall LCD Panels

Click For Larger Image

OVERVIEW - Marshall vlcd4p02 4 inch Active Matrix LCD Panel:

The Marshall V-LCD4-P-02 is a high resolution 4” TFT-LCD panel that has switchable NTSC or PAL input. Very small and compact design that makes it ideal for applications where only small spaces are available. The choice between NTSC and PAL makes this panel useful for displays being used in the U.S. and abroad. Ideal for car navigation monitoring, camcorders, car seat TV, machine vision and multimedia applications. It can easily be built into industrial machines and wall displays.

FEATURES - Marshall VLCD4P02 4 inch Lcd Panel:

• Display (Viewing Area) 4" (3.23 × 2.43)
• Resolution (Pixels) 480H × 234V
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL

SPECIFICATIONS - MARSHALL V-LCD4-P-02 LCD PANEL:

• Display (Viewing Area) 4" (3.23 × 2.43)
• Resolution (Pixels) 480H × 234V
• Dot Pitch 0.171mm × 0.264mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL switchable
• Dimensions 3.96"W × 3.15"H × 0.8"D (max.)
• Power Consumption 12 VDC, 400mA

Manufacturer Homepage: www.lcdracks.com
