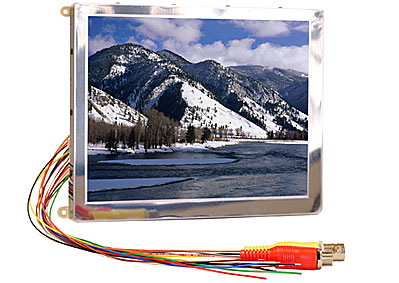

Marshall V-LCD6.8-P 6.8 inch LCD Panel w/Board & Inverter

no longer available

Back to Marshall LCD Panels

Click For Larger Image

OVERVIEW - Marshall vlcd6.8p 6.8 inch LCD Panel w/Board & Inverter:

Ready for plug and play operation with installed connectors for composite video and DC power, the Marshall V-LCD6.8-P provides a broadcast quality picture in color or B&W. Slim profile design makes it ideal for custom wall and panel installations in mobile or fixed applications. Very compact and small in size for easy installation: 6.25"W × 4.94"H × 0.83"D. It has a display format of 1152 × 234 (pixels) on a 6.8" diagonal screen.

FEATURES - Marshall VLCD6.8P 6.8 inch LCD Panel:

• Active matrix TFT technology allows wide viewing angle
• Bright and vivid color picture
• Slim, portable design
• With backlight compensation
• Low power consumption: 12VDC, 700mA
• NTSC / PAL auto recognition
• RGB stripe color configuration

SPECIFICATIONS - MARSHALL V-LCD6.8-P LCD PANEL:

• Display (Viewing Area) 6.8" (5.44"H x 4.07"V)
• Resolution (Pixels) 1152H x 234V
• Dot Pitch 0.120mm x 0.442mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL auto detection
• Inputs Composite Video
• Dimensions 6.25"W x 4.94"H x 0.83"D
• Contrast Ratio 150:1
• Power Consumption 12 VDC, 700mA

Manufacturer Homepage: www.lcdracks.com
