Marshall V-LCD8-P 7.9 inch LCD Panel NTSC/PAL Switchable

no longer available

Back to Marshall LCD Panels

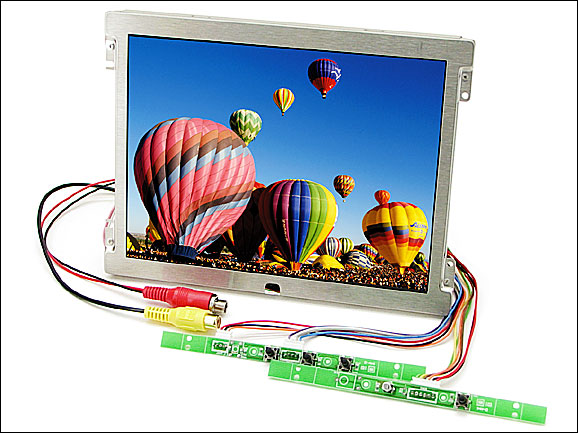

Click For Larger Image

OVERVIEW - Marshall vlcd8p 7.9 inch LCD Panel NTSC/PAL Switchable:

The Marshall V-LCD8-P is a high resolution LCD panel with NTSC/PAL auto recognition. To operate unit, supply 12 VDC @600mA of power (Marshall V-PS12-1000, not included) into the red coaxial power jack. Supply an NTSC or PAL composite video signal to the yellow PCA connector.

The panel comes with two boards that have buttons mounted on them. The board with the single button is ON/OFF switch. The other button board board has three buttons, the first button is MENU/SELECT and the second and third buttons are UP and DOWN, respectively. The panel can automatically detect if the signal is NTSC or PAL. To adjust the picture, press the MENU/SELECT button and use the on-screen display to access contrast, color, and tint.

FEATURES - Marshall VLCD8P 7.9 inch Lcd Panel:

• Display (Viewing Area) 7.9" (6.35 × 4.65)
• Resolution (Pixels) 1440H × 234V
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL

SPECIFICATIONS - MARSHALL V-LCD8-P LCD PANEL:

• Display (Viewing Area) 7.9" (6.35 × 4.65)
• Resolution (Pixels) 1440H × 234V
• Dot Pitch 0.112mm × 0.504mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto detection
• Dimensions 7.53"W × 5.69"H × 0.45"D
• Power Consumption 12 VDC, 600mA

Manufacturer Homepage: www.lcdracks.com
