Marshall V-R154P
15 inch rack mountable LCD monitor w/ built-in TV tuner, Quad Splitter
Our Price $3349.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|
 Click For Larger Image |

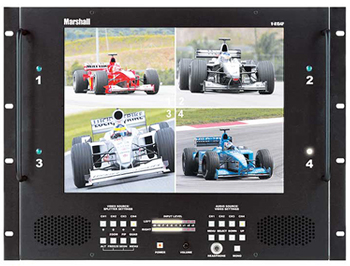

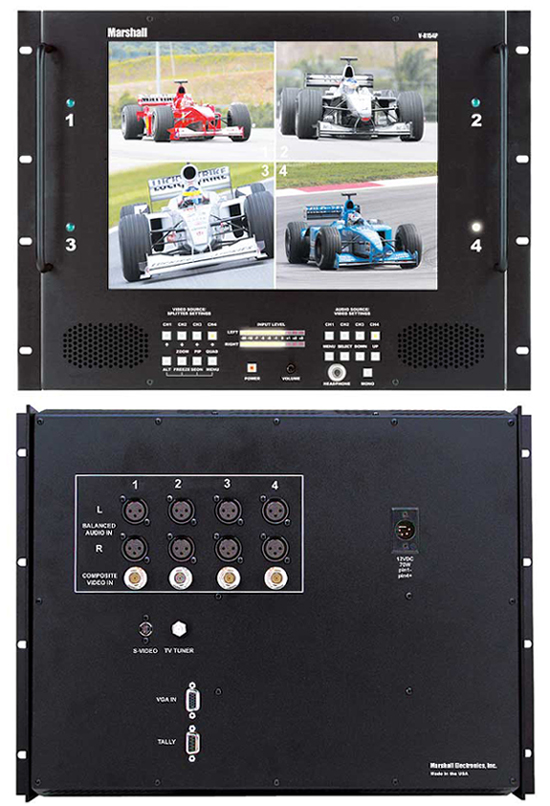

MARSHALL V-R154P 15 inch rack mountable LCD monitor w/ built-in TV tuner, Quad Splitter |
OVERVIEW - Marshall vr154p 15 inch rack mountable LCD monitor w/ built-in TV tuner, Quad Splitter:
The
Marshall V-R154P is a 15" LCD rack mounted unit with a built-in 125 channel TV Tuner, Quad Splitter, and Sequential Switcher/Router with Stereo Audio. This panel has 1024 x 768 pixels producing a true high resolution image. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using full screen or picture-in-picture mode. The unit fits into a EIA standard 19” rack, 8U high. The unit is controlled and calibrated using an on screen display while using the front mounted buttons for adjustment.
The built-in audio system has four balanced stereo inputs that are mono compatible which automatically default to the video source selected or can select any audio source to accompany any video source. For added flexibility, this unit can accommodate composite video, S-Video or XGA for computer monitoring (TV, S-Video and XGA inputs are only available in full screen mode). Unit includes power supply and owners manual.
|
FEATURES - Marshall VR154P
15 inch rack mount lcd monitor:
- High Resolution 1024 × 768 pixels, 786,432 total
- Bright 250 candle luminance
- Built-in Speakers
- Built-in Quad Splitter/Sequential Switcher
- Built-in Bar Graph Indicator
- Built-in 125 Channel TV Tuner (NTSC only)
- Four self-powered tally lights
- Unique 180 degree tilt adjustment while mounted in rack
- Available in NTSC or PAL format
|
SPECIFICATIONS - MARSHALL V-R154P RACK MOUNT LCD MONITOR:
- Display (Viewing Area) 15.1" (11.69" × 9.12")
- Resolution (Pixels) 1024 H × 768 V
- Dot Pitch 0.297mm × 0.302mm
- Brightness (in cd/m²) 250 cd/m²
- System NTSC - V-R154P PAL - V-R154P-PAL
- Inputs VIDEO: 1 S-Video, 4 Composite, 1 XGA, 1 RF(TV) (NTSC only) AUDIO: 8 Unbalanced XLR, 1 RF Stereo pair (TV)
- Dimensions 19.12"W × 13.80"H × 3.33"D
- Approx. Weight 14 lbs
- Power Consumption 12 VDC, 5.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
