Marshall V-R171P-4
17 inch Rack Mountable LCD Monitor with Quad Splitter & Switcher
Our Price $2899.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

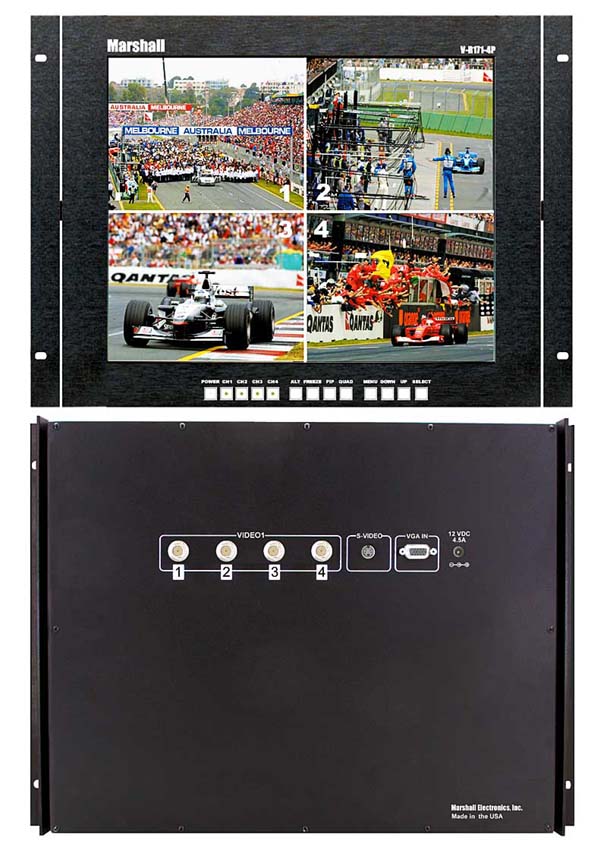

 Click For Larger Image |
MARSHALL V-R171P-4 17 inch Rack Mountable LCD Monitor with Quad Splitter & Switcher
|
OVERVIEW - Marshall vr171p4 17 inch Rack Mountable LCD Monitor with Quad Splitter & Switcher:
The
Marshall V-R171P-4 is a 17" LCD rack mounted unit that features a built-in Quad Splitter with Sequential Switcher. This high resolution LCD panel has a pixel count 1280 x 1024, capable of producing nearly 17 million colors, and fits in a standard 19" rack 8U high. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using the full screen or picture-in-picture mode.
Other features include digital freeze and zoom functions as well as 16:9 aspect ratio via an on screen menu. For added flexibility, this unit can accommodate 4 composite video, 1 S-Video or 1 SXGA for computer monitoring (S-Video and SXGA inputs are only available in full screen mode). The unit includes power supply and owners manual. |
FEATURES - Marshall
VR171P4 17 inch Rack Mountable LCD Monitor:
- High Resolution LCD panel, 1280 x 1024 pixels, 1,310,720 total
- Unique Ultra Wide Viewing Angle LCD Panel, 170° in any direction
- Bright 250 candle luminance
- Built-in Quad Splitter/Sequential Switcher
- Software driven 16:9 to 4:3 ratio switch
- HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter
- Compact design fits in EIA standard rack 8U high
- Unique 180 degree tilt adjustment while mounted in rack
- Available in NTSC or PAL format
|
SPECIFICATIONS - MARSHALL V-R171P-4 RACK MOUNT LCD MONITOR:
- Display (Viewing Area) 17" (13.30" × 10.64")
- Resolution (Pixels) 1280H × 1024V
- Dot Pitch 0.264mm × 0.264mm
- Brightness (in cd/m²) 250 cd/m²
- System NTSC - V-R171P-4 PAL - V-R171P-4-PAL
- Inputs 1 S-Video, 4 Composite, 1 SXGA
- Dimensions 19.125"W × 13.80"H × 2.5"D
- Approx. Weight 13 lbs
- Power Consumption 12 VDC, 3.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
