Marshall V-R191P-SDI
19 inch LCD Rack Mountable Panel with SDI Input
Our Price $2999.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

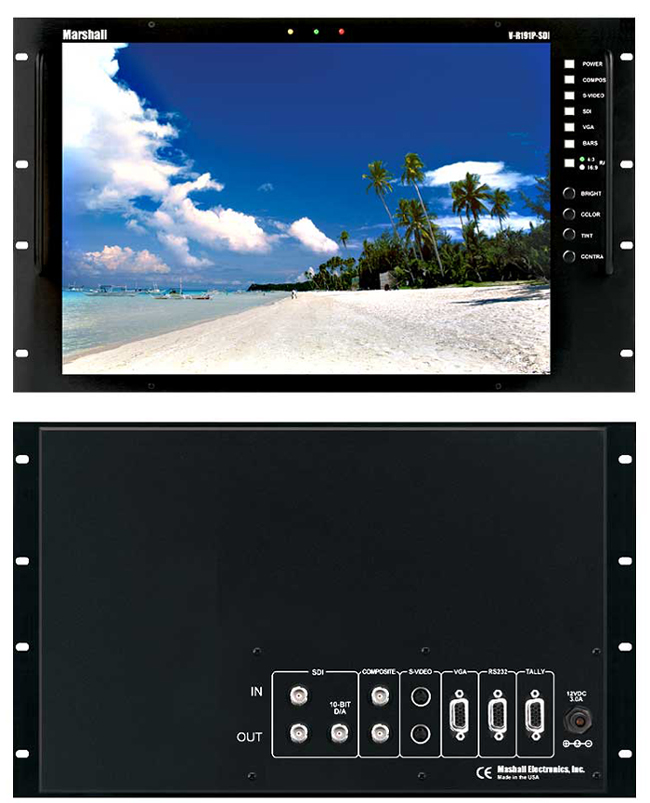

 Click For Larger Image |

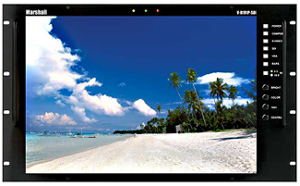

MARSHALL V-R191P-SDI 19 inch LCD Rack Mountable Panel with SDI Input
|
OVERVIEW - Marshall vr191psdi 19 inch LCD Rack Mountable Panel with SDI Input:
The
Marshall V-R191P-SDI is a 19” high resolution LCD panel that is the perfect fit for your DTV Wide Screen monitor needs. The unit offers a flexible input configuration without the need of special adapters or control boxes, standard inputs and active loop through on each connection for SDI (ITU-R BT601), composite video and Y/C (S-Video).
For computer graphic applications, this unit also has a scalable SVGA input. As an added feature, a 10-bit analog output is available when using an SDI signal. Adjustments are made using convenient front panel controls. The unit includes power supply and owners manual. |
FEATURES - Marshall VR191PSDI 19 inch
Rack Mount Lcd Panel with SDI Input:
- High Resolution, LCD panel, 1280 x 1024 pixels, 1,310,720 total
- 16.7 million colors
- CRT style viewing radius - 170° in any direction provides superior visibility when the viewer is not directly in front of the screen
- 250 candelas per square meter (cd/m2) luminance produces excellent image quality in varying light and viewing conditions
- 500:1 contrast ratio with response rates less than 20 ms results in excellent quality for moving images
- 4:3 and 16:9 screen aspect ratios for DTV operations
- Standard Multiformat inputs: composite, Y/C and SDI with active loop through plus VGA/XVGA input with automatic scaling
- When the SDI input signal is selected, a standard 10 bit composite output is provided using 12-bit Digital to Analog processing, potentially saving hundreds of dollars spent on a conversion product
- Convenient front panel controls with dedicated input and ratio selections and adjustments
- Three color, self-powered tally system provided for each panel
|
SPECIFICATIONS - MARSHALL V-R191P-SDI RACK MOUNT LCD PANEL:
- Display (Viewing Area) 19” (14.82" x 11.85")
- Resolution (Pixels) 1280 H x 1024 V
- Dot Pitch 0.294 mm / RGB stripe
- Brightness (in cd/m²) 250 cd/m²
- System NTSC/PAL auto recog.
- Inputs 1 Composite BNC, 1 S-Video Mini Din, 1 SDI BNC, 1 SVGA HD-15
- Dimensions 19.12"W x 13.8"H x 2.5"D
- Approx. Weight 14.6 lbs
- Power Consumption 12 VDC, 3.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
