Marshall V-R43P Triple 4 inch LCD Screen Rack Mount Panel

Our Price $987.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

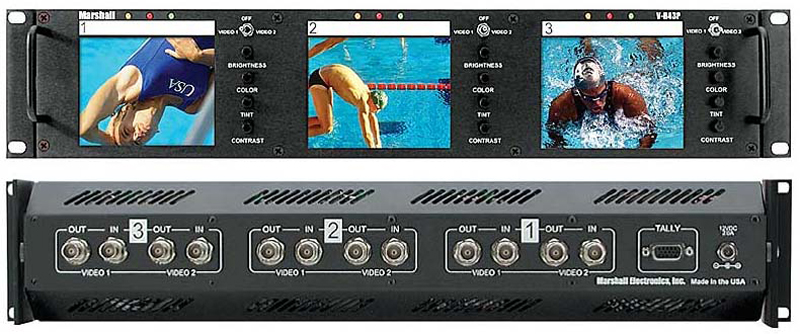

OVERVIEW - Marshall vr43p Triple 4 inch LCD Screen Rack Mount Panel:

The Marshall V-R43P is a rack mountable unit that offers three 4" high-resolution active matrix LCD panels. Each of the three 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has an on/off switch, two composite video inputs with active loop through feature, a self-powered 3 color tally system, and auto-recognition of NTSC or PAL video formats.

This unit is only 2U high, can be tilted up to 100 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

FEATURES - Marshall VR43P Triple 4 inch Rack Mount Lcd Panel:

• High Resolution, 480 × 234 pixels, 112,320 total
• Ultra-compact design fits in EIA standard rack 2U high
• Ultra bright panels with 300 candle luminance each
• Each screen has 2 Composite Video inputs with active loop through feature
• Automatic NTSC/PAL Video Signal Detection
• Unique 100 degree tilt adjustment while mounted in rack
• Three color, self-powered tally system provided for each panel
• Dry Erase Marker for EZ Identifying of screens is included

SPECIFICATIONS - MARSHALL V-R43P RACK MOUNT LCD PANEL:

• Display (Viewing Area) 4" (3.23" × 2.43")
• Resolution (Pixels) 480 H × 234 V
• Dot Pitch 0.171mm × 0.264mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL auto recognition
• Inputs per panel (total) 2 (6) Composite
• Dimensions 19.125"W × 3.43"H × 1.9"D
• Approx. Weight 3.5 lbs
• Power Consumption 12VDC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
