Marshall V-R44P Four 4 inch LCD Screen Rack Mount Panel

Our Price $1233.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr44p Four 4 inch LCD Screen Rack Mount Panel:

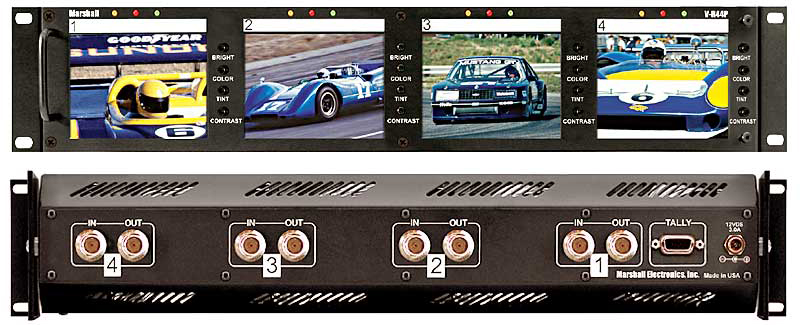

The Marshall V-R44P is a rack mountable unit that offers four 4" high-resolution active matrix LCD panels. Each of the four 480 x 234 pixel screens has its own set of controls for color, tint, contrast, and brightness. Each panel has its own input with active loop through feature, a 3 color tally system, and auto-recognition of NTSC or PAL formats.

This unit is only 2U high, and can be tilted up to 90 degrees while rack mounted, and is the smallest video monitoring system of its kind. All V-R Series models are constructed of steel and aluminum, and include power supply and owners manual.

FEATURES - Marshall VR44P Four 4 inch Rack Mount Lcd Panel:

• Ultra-compact design fits in EIA standard rack 2U high
• High Resolution, 480 x 234 pixels, 112,320 total
• Ultra bright panels with 300 candle luminance each
• NTSC/PAL auto recognition
• Individual color, tint, brightness and contrast controls
• Unique 100 degree tilt adjustment while mounted in rack
• Three color, self-powered tally system provided for each panel
• Dry Erase Marker for EZ Identifying of screens is included

SPECIFICATIONS - MARSHALL V-R44P RACK MOUNT LCD PANEL:

• Display (Viewing Area) 4" (3.23" × 2.43")
• Resolution (Pixels) 48 0H × 234 V
• Dot Pitch 0.171mm × 0.264mm
• Brightness (in cd/m²) 300 cd/m²
• System NTSC/PAL auto recognition
• Inputs per panel (total) 1 (4) Composite
• Dimensions 19.125"W × 3.43"H × 1.9"D
• Approx. Weight 3.5 lbs
• Power Consumption 12 VDC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
