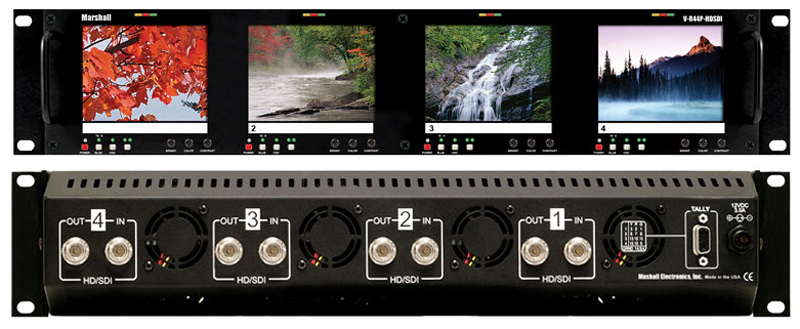

Marshall V-R44P-HDSDI Four 4 inch LCD Screen Rack Mount Panel with HDSDI / SDI inputs

Our Price $3129.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr44phdsdi Four 4 inch LCD Screen Rack Mount Panel with HDSDI / SDI inputs:

The Marshall Rack mounted and tiltable V-R44P-HDSDI represents leading edge technology in LCD imaging for broadcast and professional video applications featuring Advanced Resolution, Anti Glare TFT screens with completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on each screen of this model.

All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.

FEATURES - Marshall VR44PHDSDI Four 4 inch Rack Mount Lcd Panel:

• Four 3.5-inch Advanced Definition 4:3 screens
• 100% digital processing
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
• Works with all SMPTE/ITU SDI/HDSDI production formats and frame rates
• Blue Gun for color adjustment
• SD/HD digital signal indicators

SPECIFICATIONS - MARSHALL V-R44P-HDSDI RACK MOUNT LCD PANEL:

• Number of Screens 4
• Display (Viewing Area) 3.5" Diagonal, (2.83"H x 2.07"V) (72.0mm x 52.56mm)
• Resolution (RGB Dots) 640H x RGB x 480V
• Viewing Angles 100° H x 50° V
• Dot Pitch 0.1125 mm (W) x 0.1095mm (H)
• Contrast Ratio 350:1
• Pixel Response <30ms
• Brightness 250 cd/m²
• System HDSDI/SDI all standards and rame rates

Manufacturer Homepage: www.lcdracks.com
