Marshall V-R53P Triple 5 inch LCD Rack Mount Panel - NTSC

Our Price $1733.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

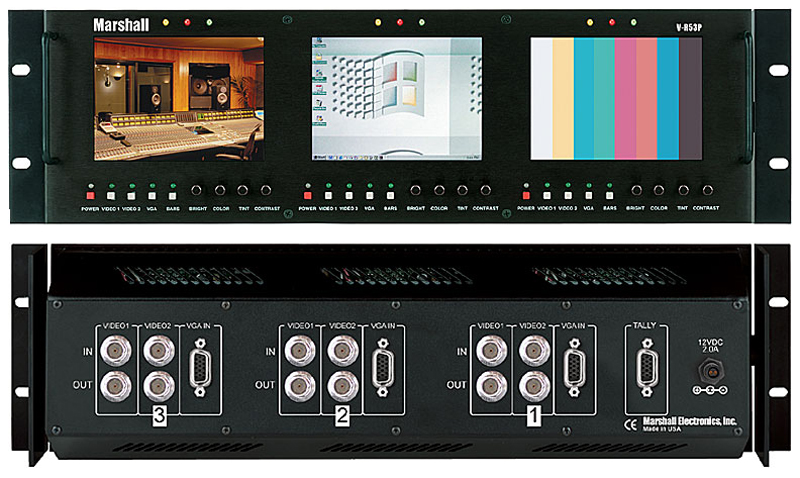

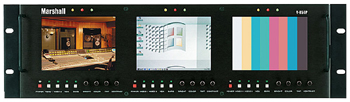

Click For Larger Image

OVERVIEW - Marshall vr53p Triple 5 inch LCD Rack Mount Panel - NTSC:

The Marshall V-R53P is a rack mounted unit that has three independently controlled 5" active matrix LCD panels with active loop through feature. These 5” panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19” rack, 3U high.

Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. Each screen has two composite video inputs and outputs, and a VGA input for computer monitoring. The unit includes power supply and manual.

FEATURES - Marshall VR53P Triple 5 inch Rack Mount LCD Panel:

• High Resolution, 960 × 234 pixels, 224,640 total
• Ultra bright 350 candle luminance
• Two composite video inputs per monitor with active loop through feature and automatic 75W termination
• Low power consumption and heat dissipation for mobile applications
• NTSC/PAL auto recognition
• Three color, self-powered tally system provided for each panel
• VGA inputs for computer multi media monitoring (640 × 480)
• Individual color, tint, brightness and contrast controls for each panel
• Built-in Color Bar Generator
• Unique 180 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R53P RACK MOUNT LCD PANEL:

• Display (Viewing Area) 5" (4.75" × 2.95")
• Resolution (Pixels) 960 H × 234 V
• Dot Pitch 0.107mm × 0.320mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto recognition
• Inputs per panel (total) 2 (6) Composite 1 (3) VGA (640 x 80)
• Dimensions 19.125"W × 5.14"H × 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12 DC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
