Marshall V-R563P Triple 5.6 inch LCD Rack Mount Panel

Our Price $1343.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

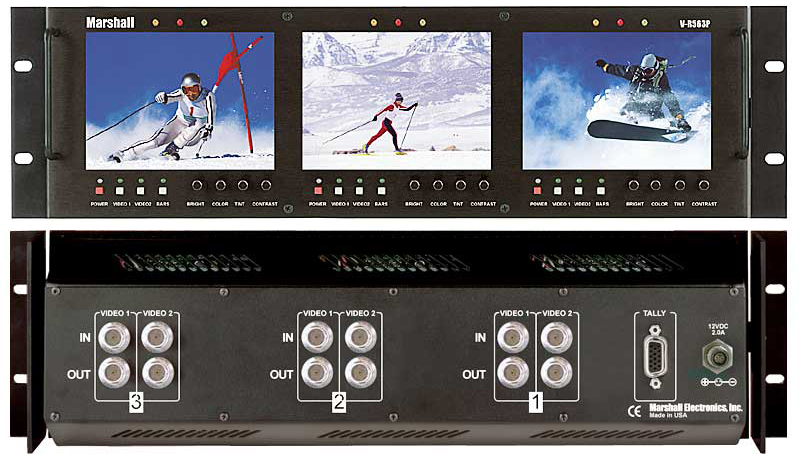

Click For Larger Image

OVERVIEW - Marshall vr563p Triple 5.6 inch LCD Rack Mount Panel:

The Marshall V-R563P is a rack mounted unit that has three independently controlled 5.6" active matrix LCD panels with active loop through feature. These 5.6” panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19” rack, 3U high.

Each screen has two composite video inputs and outputs, and 3 color tally system. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply, manual and features auto recognition for NTSC or PAL.

FEATURES - Marshall VR563P Triple 5.6 inch LCD Rack Mount Panel:

• High Resolution, 960 x 234 pixels, 224,640 total
• Ultra bright 350 candle luminance
• Two composite video inputs per monitor with active loop through feature and automatic 75Ohm termination
• Low power consumption and heat dissipation for mobile applications
• Individual color, tint, brightness and contrast controls for each panel
• Three color, self-powered tally system provided for each panel
• NTSC/PAL auto recognition
• Built-in Color Bar Generator
• Unique 180 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R563P TRIPLE 5.6 INCH LCD RACK MOUNT PANEL:

• Display (Viewing Area) 5.6" (4.46" × 3.33")
• Resolution (Pixels) 960H × 234V
• Dot Pitch 0.118 mm x 0.362 mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 2 (6) Composite
• Dimensions 19.125"W × 5.14"H × 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12 VDC, 2.0 Amps
