OVERVIEW - Marshall vr563psdi Triple 5.6 inch LCD Rack Mount Panel with SDI Input:

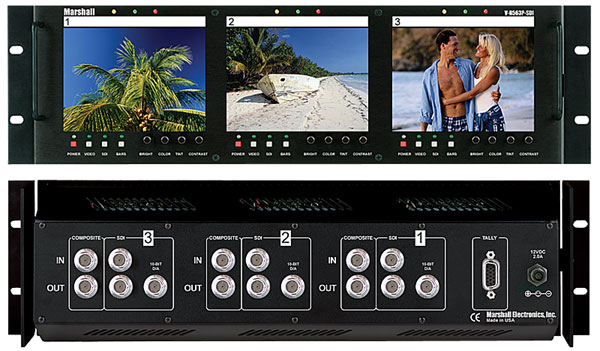

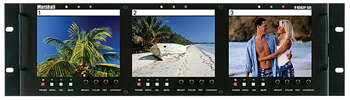

The Marshall V-R563P-SDI is a rack mounted unit that has three independently controlled 5.6" active matrix LCD panels. These 5.6” panels have 960 x 234 pixels producing a true high resolution image. This unit also has a unique feature that allows the unit to tilt up or down for optimum viewing angle. The unit fits into an EIA standard 19” rack, 3U high.

Each screen has one composite video with active loop through and one SDI (SMTPE 259M) input with active loop through and active clock recovery with automatic 75? termination. Each of the three screens has a built-in color bar generator, individual front mounted selector buttons with LED indicators and color, tint, brightness and contrast controls. The unit includes power supply, manual and features auto recognition for NTSC or PAL.

FEATURES - Marshall VR563PSDI Triple 5.6 inch Rack Mount LCD Panel:

• High Resolution, 960 x 234 pixels, 224,640 total
• Ultra bright 350 candle luminance
• One Composite video input per monitor with active loop through and 75 Ohm termination
• One SDI (SMTPE 259M) Input per monitor with active loop through and active clock recovery with automatic 75Ohm termination
• Low power consumption and heat dissipation for mobile applications
• Individual color, tint, brightness and contrast controls for each panel
• Three color, self-powered tally system provided for each panel
• NTSC/PAL auto recognition
• Built-in Color Bar Generator
• Unique 180 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R563P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 5.6” (4.46" x 3.33")
• Resolution (Pixels) 960 H x 234 V
• Dot Pitch 0.118 mm x 0.362 mm
• Brightness (in cd/m²) 350 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 1 (3) Composite 1 (3) SDI
• Dimensions 19.125"W x 5.14"H x 2.5"D
• Approx. Weight 5 lbs
• Power Consumption 12VDC, 2.0 Amps
