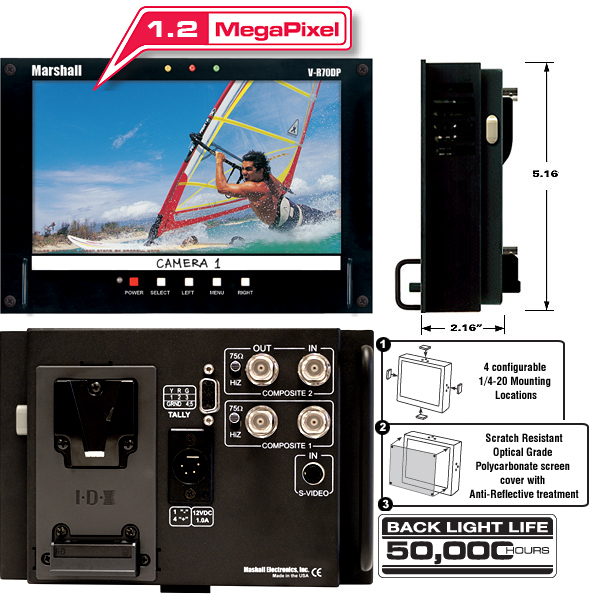

Marshall V-R70DP 7 inch Wide Screen LCD Monitor

Our Price $819.99 Including 3 - 5 Day Shipping

Back to Marshall LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr70dp 7 inch Wide Screen LCD Monitor:

The Marshall V-R70DP is the successor to the V-R70P. Significant improvements over the previous model include our Completely Digital TFT-Megapixel high resolution LCD screen with 1.2 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion. Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.


FEATURES - Marshall VR70DP 7 inch Wide Screen LCD Monitor:

• Durable metal enclosure
• "V" Mount battery adapter included
• Runs 4 to 6 hours on optional 50WH battery
• High Resolution 7-inch wide screen 800x480 Dots with 1.2 million pixels
• Optical grade polycarbonate screen cover with Antireflective/Antiglare coating
• 100% digital processing
• Analog signals converted to 10 bit digital
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios
• Automatic NTSC/PAL format detection
• Standard inputs:
• Composite Video PAL/NTSC with loop output
• 4 Pin XLR D.C. power jack
• Easy to see three color tally indicators
• Built in Color Bars
• Blue Screen for color adjustment
• Adjustment Settings Memory
• Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
• Includes universal voltage Class-2 power supply
• Fits into Tektronix WFM7F05/1700F05 rack adapter
• Optional rack mount kit

SPECIFICATIONS - MARSHALL V-R70DP LCD MONITOR:

• Display (Viewing Area) 7" (6.14” x 3.27”)
• Resolution (Pixels) 800 H x RGB x 480 V
• Dot Pitch 0.065 mm x 0.175 mm
• Inputs per panel (total) 2 Composite, 1 S-Video
• Brightness (in cd/m²) 380 cd/m²
• System NTSC/PAL auto rec
• Dimensions 7.60”W x 5.16”H x 2.16”D
• Approx. Weight 1.8 lbs
• Power Consumption 10-17 VDC, 600 mA

Manufacturer Homepage: www.lcdracks.com
