Marshall
V-R70P-HDA
7 inch Wide Screen High Res LCD Monitor with Composite & Component Inputs
Our Price $1249.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|
 |
MARSHALL V-R70P-HDA 7 inch Wide Screen High Res LCD Monitor with Composite & Component Inputs |
|

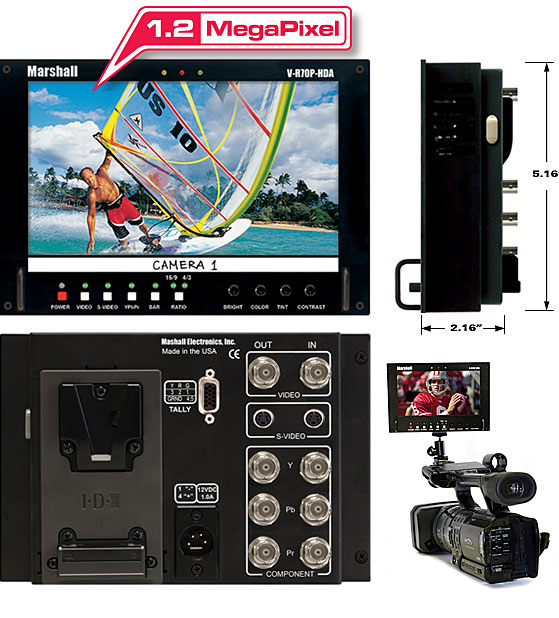

Click For Larger Image |
OVERVIEW - Marshall vr70phda 7 inch Wide Screen High Res LCD Monitor with Composite & Component Inputs:
The Marshall V-R70P-HDA features our completely Digital TFT-Megapixel high resolution LCD screen with 1.2 million pixels, V-Mount battery adapter, 4 pin XLR power jack, and optical grade polycarbonate screen protection. Analog signals are digitized using an advanced 10 bit process with 4x over sampling and adaptive 5 line comb filter plus exacting color space conversion. Video is scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4 x 4 pixel interpolation with precision Gamma correction to product the best images available. |
FEATURES - Marshall
VR70PHDA 7 inch Wide Screen Lcd Monitor:
- Durable metal enclosure
- "V" Mount battery adapter included
- Runs 4 to 6 hours on optional 50WH battery
- High Resolution 7-inch wide screen 800´480 Dots with 1.2 million pixels
- Optical Grade polycarbonate screen cover with Antireflective/Antiglare coating
- 100% digital processing
analog signals converted to 10 bit digital
- High resolution scaling of all images
- Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
- 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
- 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
- 4:3 and 16:9 screen aspect ratios
- Automatic NTSC/PAL format detection
- Standard inputs: Composite Video PAL/NTSC with loop output Component YPrPb HD/SD with loop out 4 Pin XLR D.C. power jack
- Easy to see three color tally indicators
- Built in Color Bars
- Blue Screen for color adjustment
- Adjustment Settings Memory
- Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
- Includes universal voltage Class-2 power supply
- Fits into Tektronix WFM7F05/1700F05 rack adapter
- Optional rack mount kit
|
SPECIFICATIONS - MARSHALL V-R70P-HDA LCD MONITOR:
|
Display (Viewing Area) |
7" (6.14" × 3.27") |
|
Resolution (Pixels) |
800 H × RGB × 480 V |
|
Dot Pitch |
0.065mm × 0.175mm |
|
Brightness (in cd/m²) |
380 cd/m² |
|
System |
NTSC/PAL auto recognition |
|
Inputs |
1 Composite, 1 Component HD/SD |
|
Dimensions |
7.6"W × 5.16"H × 2.16"D |
|
Approx. Weight |
1.8 lbs |
|
Power Consumption |
10-17 VDC, 600 mA |
Manufacturer Homepage: www.lcdracks.com
|
