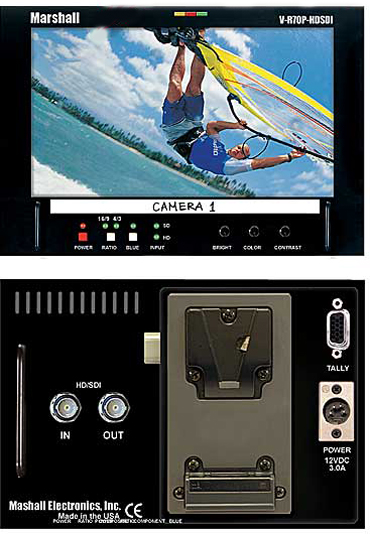

Marshall V-R70P-HDSDI 7 inch Wide Screen High Res LCD Monitor with HDSDI Inputs

Our Price $1589.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

OVERVIEW - Marshall vr70phdsdi 7 inch Wide Screen High Res LCD Monitor with HDSDI Inputs:

The Marshall V-R70P-HDSDI represents leading edge technology in LCD imaging for broadcast and Professional video applications featuring our High Resolution, TFT-Megapixel screen with 1.2 million pixels and completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on this model.

All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4 ´ 4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature).

FEATURES - Marshall VR70PHDSDI 7 inch Wide Screen High Res LCD Monitor:

• Durable metal enclosure
• "V" Mount battery adapter included
• Runs 4 to 6 hours on optional 50WH battery
• High Resolution 7-inch wide screen 800´480 Dots with 1.2 million pixels
• Optical Grade polycarbonate screen cover with Antireflective/Antiglare coating
• 100% digital processing
• Analog signals converted to 10 bit digital
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images

SPECIFICATIONS - MARSHALL V-R70P-HDSDI LCD MONITOR:

• 4:3 and 16:9 screen aspect ratios
• Automatic NTSC/PAL format detection
• standard inputs: HDSDI/SDI (Smpte-292M/259M) 4 Pin XLR D.C. power jack
• Easy to see three color tally indicators
• Built in Color Bars
• Blue Screen for color adjustment
• Adjustment Settings Memory
• Includes ¼-20 mounting plate that can be attached to any edge of the enclosure (additional mounting plates available)
• Includes universal voltage Class-2 power supply
• Fits into Tektronix WFM7F05/1700F05 rack adapter
• Optional rack mount kit

Manufacturer Homepage: www.lcdracks.com
