Marshall V-R71PA-SDI
7 inch Wide Screen Rack Mount Panel with SDI, YPrPb & Composite
No Longer Available
Back to
Marshall Rack Mount LCD Monitors |
|
|

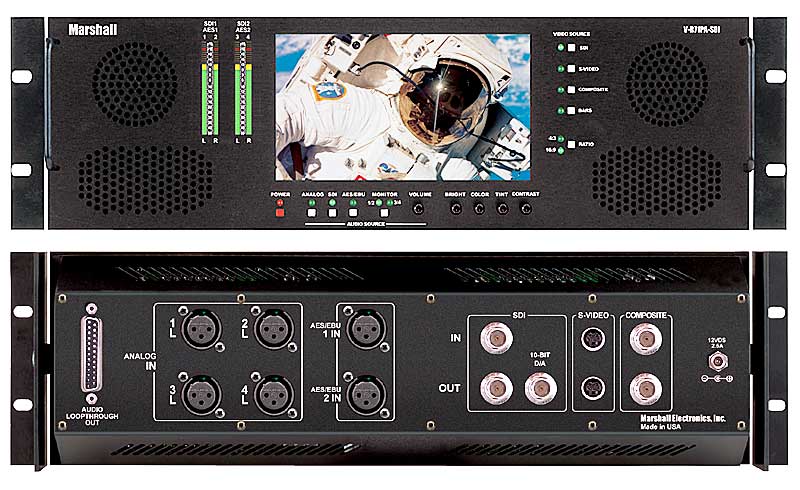

 Click For Larger Image |
MARSHALL V-R71PA-SDI 7 inch Wide Screen Rack Mount Panel with SDI, YPrPb & Composite |
OVERVIEW - Marshall vr71pasdi 7 inch Wide Screen Rack Mount Panel with SDI, YPrPb & Composite:
At just 3 rack spaces high, the
Marshall V-R71PA-SDI is loaded with features and flexibility. This unit accepts SDI, S-Video, and composite video sources with loop through in a 16:9 or 4:3 ratio. Two stereo pairs of audio may be inputted via 1 SDI embedded, or 2 AES/EBU, or 4 balanced XLR inputs. Simultaneous visual monitoring of up to 4 audio channels is obtained using a high-resolution LED bar display, while one selectable pair of audio is monitored via 2-way full range stereo speakers.
Using a new revolutionary Class D all digital power amplifier, the V-R71PA-SDI delivers 5 watts per channel of high fidelity audio, but produces virtually zero heat. Other features include NTSC/PAL auto recognition (Composite and S-Video), a color bar generator, controls for volume, color, tint, contrast, and brightness. The unit includes power supply and owners manual.
|
FEATURES - Marshall VR71PASDI 7 inch Wide Screen Rack Mount
Lcd Panel:
- High Resolution 1440 × 234 pixels, 336,960 total
- Ultra bright 400 candle luminance
- Video inputs include SDI (SMPTE 259M), S-video and Composite
- Switchable 4:3 and 16:9 ratios
- Audio inputs include SDI embedded, AES/EBU digital (up to 24-bit resolution) and Balanced Analog
- Revolutionary Class D digital audio amplifier offers 5 watts MS per channel
- Color, tint, brightness and contrast controls
- Built-in memory saves current setup when unit is powered down
- Built-in Color Bar Generator
- Unique 180 degree tilt adjustment while mounted in rack
|
SPECIFICATIONS - MARSHALL V-R71PA-SDI RACK MOUNT LCD PANEL:
- Display (Viewing Area) 7" (6.07" × 3.41")
- Resolution (Pixels) 1440 H × 234 V
- Dot Pitch 0.108mm × 0.375mm
- Brightness (in cd/m²) 400 cd/m²
- System NTSC/PAL auto recognition
- Inputs VIDEO 1 S-Video, 1 Composite, 1 SDI AUDIO 4 SDI Embedded, 2 AES/EBU Stereo Pair, 4 Balanced Analog XLR
- Dimensions 19.12"W × 5.14"H × 2.65"D
- Approx. Weight 5 lbs
- Power Consumption 12 VDC, 4.0 Amps
