Marshall V-R72DP-2C Dual 7 inch Wide Screen LCD Rack Mount Panel with 2 NTSC inputs

Our Price $1589.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

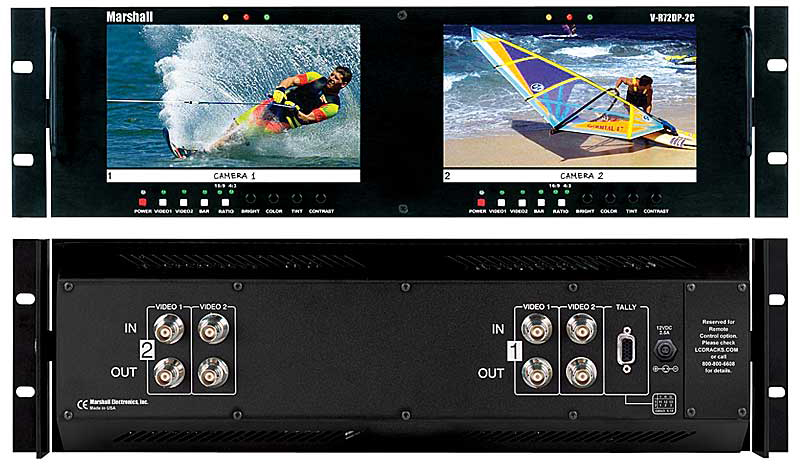

Click For Larger Image

OVERVIEW - Marshall vr72dp2c Dual 7 inch Wide Screen LCD Rack Mount Panel with 2 NTSC inputs:

The Marshall Rack mounted and tiltable V-R72DP-2C represents leading edge technology in LCD/TFT imaging for broadcast and professional video applications. The V-R72DP-2C has the highest resolution TFT screens and completely digital signal processing. Analog signals are digitized using an advanced 10 bit process on each signal path with 4x over sampling and adaptive 5 line comb filter with exacting color space conversion. All video formats are scaled to fit on screen in the highest resolution using state of the art LSIs that incorporate 4 x 4 pixel interpolation with precision Gamma correction to product the best images available.

FEATURES - Marshall VR72DP2C Dual 7 inch Wide Screen Rack Mount Lcd Panel:

• High Resolution 7-inch wide screen
• 800 x RGB x 480 Dots with 1.2 million pixels
• 100% digital processing
• Analog signals converted to 10 bit digital
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen
• 380 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications
• Automatic NTSC/PAL format detection Standard inputs: 2 Composite Video PAL/NTSC per screen Loop through of all inputs signals
• Easy to see three color tally indicators
• Built in Color Bars
• Blue Screen for color adjustment
• Adjustment Settings Memory

SPECIFICATIONS - MARSHALL V-R72DP-2C RACK MOUNT LCD PANEL:

• Display (Viewing Area) 7” (6.14” x 3.27”)
• Resolution (Pixels) 800 H x RGB x 480 V
• Dot Pitch 0.105 mm x 0.16 mm
• Brightness (in cd/m²) 380 cd/m²
• System NTSC/PAL auto rec
• Inputs per panel (total) 2 (4) Composite
• Dimensions 19.12”W x 5.14”H x 2.5”D
• Approx. Weight 5 lbs
• Power Consumption 12 VDC, 3.0 Amps

Manufacturer Homepage: www.lcdracks.com
