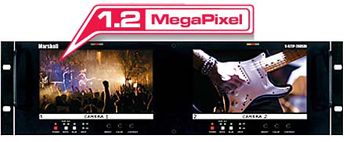

Marshall V-R72P-2HDSDI Dual 7 inch Screen HDSDI / SD Monitor set with 1.2 Megapixel LCD Displays

Our Price $2349.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

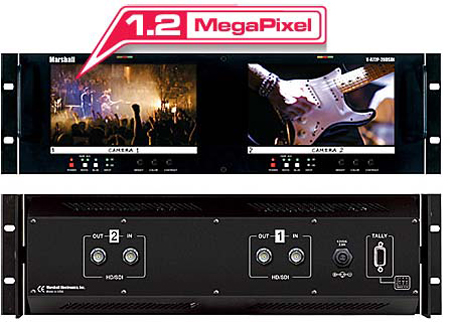

Click For Larger Image

OVERVIEW - Marshall vr72p2hdsdi Dual 7 inch Screen HDSDI / SD Monitor set with 1.2 Megapixel LCD Displays:

The Marshall Rack mounted and tiltable V-R72P-2HDSDI represents leading edge technology in LCD imaging for broadcast and professional video applications featuring High Resolution, 1.2 megapixel, TFT screens with completely digital signal processing. All SMPTE/ITU serial digital video standards and frame rates are accepted and displayed on each screen of this model.

All video formats are scaled to fit on screen in the highest resolution using a state of the art LSI that incorporates 4x4 pixel interpolations with precision Gamma correction to produce the best images available. Each screen is calibrated to SMPTE standards for gamma and color temperature.

FEATURES - Marshall VR72P2HDSDI Dual 7 inch Screen HDSDI / SD Rack Mount Lcd Monitor:

• Two 7-inch 1.2 MegaPixel wide screens
• 100% digital processing
• High resolution scaling of all images
• Wide viewing radius - 130° horizontal and 120° vertical provides superior visibility when the viewer is not directly in front of the screen.
• 380 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 400:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
• Works with all SMPTE/ITU SDI/HDSDI production formats and frame rates
• Blue Gun for color adjustment
• SD/HD digital signal indicators

SPECIFICATIONS - MARSHALL V-R72P-2HDSDI RACK MOUNT LCD MONITOR:

• Number of Screens 2
• Display (Viewing Area) 7" (6.14"H × 3.27"V) (156.0mm x 83.28mm)
• Resolution ( RGB Dots) 800H x RGB x 480V (1.2 million pixels)
• Viewing Angles 130° H x 120° V
• Dot Pitch 0.065mm (W) x 0.175mm (H)
• Contrast Ratio 400:1
• Pixel Response <30ms
• Brightness 380 cd/m²
• System All HDSDI and SDI Component Digital Signals

Manufacturer Homepage: www.lcdracks.com
