Marshall V-R72P-2SD
Dual 7 inch Wide Screen LCD Rack Mount Panel - NTSC SDI Input
Our Price $2139.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|
 Click For Larger Image |

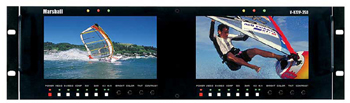

MARSHALL V-R72P-2SD Dual 7 inch Wide Screen LCD Rack Mount Panel - NTSC SDI Input |
OVERVIEW - Marshall vr72p2sd Dual 7 inch Wide Screen LCD Rack Mount Panel - NTSC SDI Input:

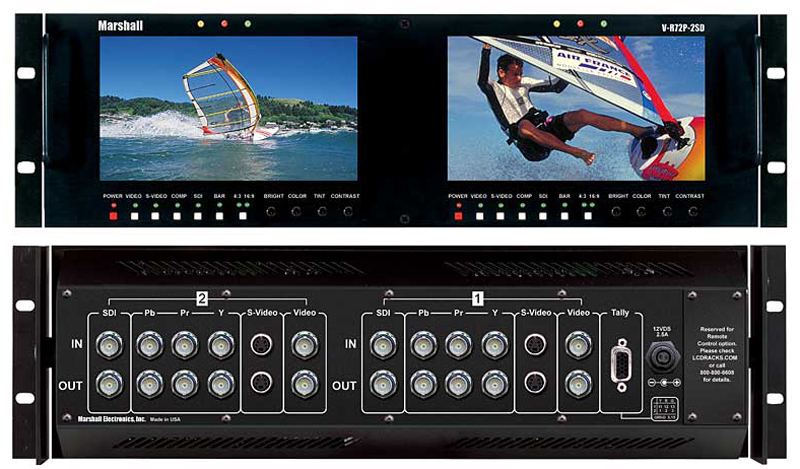

The Marshall V-R72P-2SD is a dual 7” wide screen LCD rack mounted unit 3U high. Each panel has 1 composite, 1 SDI and 1 S-Video input per monitor with active loop through feature. In addition to the digital and analog loop throughs, this unit also has a 10-bit converted output from the digital input. This unit has switchable 4:3 and 16:9 aspect ratios, built-in color bar generator, individual selector buttons and screen controls. The unit includes power supply and manual. |
FEATURES - Marshall VR72P2SD Dual 7 inch Wide Screen Rack Mount
LCD Panel:
- High Resolution 1440 × 234 pixels, 336,960 total
- Ultra bright 400 candle luminance
- Video inputs include SDI (SMPTE 259M), S-Video and Composite
- 2 High Resolution 10-bit SDI to composite video converters (one per channel) built-in
- SDI active loop through has active clock recovery with automatic 75W termination
- Switchable 4:3 and 16:9 ratios
- Fits in standard 19 inch rack, 3U high
- Individual color, tint, brightness and contrast controls for each panel
- Built-in Color Bar Generator
- Unique 180 degree tilt adjustment while mounted in rack
|
SPECIFICATIONS - MARSHALL V-R72P-2SD RACK MOUNT LCD PANEL:
- Display (Viewing Area) 7" (6.07" × 3.41")
- Resolution (Pixels) 1440 H × 234 V
- Dot Pitch 0.105mm × 0.168mm
- Brightness (in cd/m²) 400 cd/m²
- System NTSC/PAL config. switch
- Inputs per panel (total) 1 (2) Composite, 1 (2) S-Video, 1 (2) SDI
- Dimensions 19.12"W × 5.14"H × 2.5"D
- Approx. Weight 5 lbs
- Power Consumption 12 VDC, 2.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
