Marshall V-R81PA
8 inch Rack Mount Panel with NTSC, bargraphs & 4 Audio inputs
Our Price $1589.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

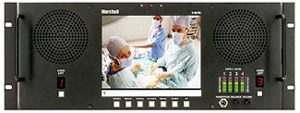

 Click For Larger Image |
MARSHALL V-R81PA 8 inch Rack Mount Panel with NTSC, bargraphs & 4 Audio inputs |
OVERVIEW - Marshall vr81pa 8 inch Rack Mount Panel with NTSC, bargraphs & 4 Audio inputs:
The Marshall V-R81PA is a rack mountable unit that has a 7.9" active matrix LCD panel with auto NTSC/PAL recognition and 4 separate audio input channels. The video section has two composite video inputs and one S-Video input, each with active loop through feature. The four audio channels are inputted via the 4 balanced XLR inputs, and have a passive loop through for each channel.
Simultaneous visual monitoring of the 4 audio channels is obtained using the LED bar graph display. Each speaker can output any of the four audio channels and selected channel output is indicated by a highly visible LED number display. Complete controls for color, tint, contrast, and brightness are provided via an on-screen menu. The unit includes power supply, manual and fits into standard EIA 19" rack, at 4U high. |
FEATURES - Marshall VR81PA 8 inch Rack Mount
Lcd Panel:
- High Resolution 1440 × 234 pixels, 336,960 total
- Ultra bright 350 candle luminance
- Built-in Speakers with Bar Graph Indicators
- 4 Independent analog audio inputs via balanced XLR connectors with passive loop through feature
- NTSC/PAL auto recognition
- 3-Position Switch for Input Audio Meter Lever Calibration. 0 VU=-10dBu, 0dBu or +4dBu
- 2 composite video inputs and an S-Video input with active loop through feature and automatic 75W termination
- Three color, self-powered tally system
- On screen menu controls color, tint, brightness and contrast controls
- Unique 180 degree tilt adjustment while mounted in rack
- Dry Erase Marker for EZ Identifying of screen is included
|
SPECIFICATIONS - MARSHALL V-R81PA RACK MOUNT LCD PANEL:
- Display (Viewing Area) 7.9" (6.35" × 4.64")
- Resolution (Pixels) 1440 H × 234 V
- Dot Pitch 0.112mm × 0.504mm
- Brightness (in cd/m²) 350 cd/m²
- System NTSC/PAL auto rec
- Inputs VIDEO: 1 S-Video, 2 Composite AUDIO: 4 Balanced Analog XLR
- Dimensions 19.125"W × 6.85"H × 2.65"D
- Approx. Weight 6 lbs
- Power Consumption 12 VDC, 3.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
