Marshall V-R842P-AFHD
Dual Screen 8.4 inch LCD Rack Mount Panel, 2.4 Megapixel High
Resolution HD/SD monitor set
Our Price $4099.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|
 Click For Larger Image |

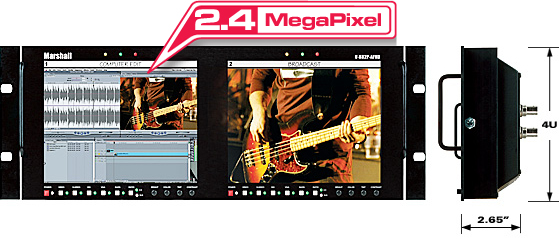

MARSHALL V-R842P-AFHD Dual Screen 8.4 inch LCD Rack Mount Panel, 2.4 Megapixel
High Resolution HD/SD monitor set |
OVERVIEW - Marshall vr842pafhd Dual Screen 8.4 inch LCD Rack Mount Panel, 2.4 Megapixel
High Resolution HD/SD monitor set
Occupying only 4 rack units of a standard 19" EIA equipment rack, the
Marshall V-R842P-AFHD represents leading edge technology in LCD imaging for broadcast and professional video applications. High Resolution, 2.4 megapixel, TFT screens with completely digital signal processing provide image reproduction that exceeds all CRT displays available in a similar form factor. All SMPTE/ITU
video standards and signal types are accepted and displayed on each
screen of this model.
Analog signals are digitized using an advanced 10
bit process on each signal path with 4x over sampling and adaptive 5
line comb filter with exacting color space conversion. All video
formats are scaled to fit on screen in the highest resolution using a
state of the art LSI that incorporates 4x4 pixel interpolations with
precision Gamma correction to produce the best images available.
Additional features include, setup memory, Zoom function, 6 Frame
Marker Overlays, Blue Gun, and direct access for all adjustment and
selection functions.
|
FEATURES - Marshall VR842PAFHD Dual Screen 8.4 inch Rack Mount
Lcd Panel:
- High Definition Resolution 8.4-inch 2.4 MegaPixel screen with 1024 x 768 resolution
- 100% digital processing
- Analog signals converted to digital
- High resolution scaling of all images
- CRT style viewing radius - 170° in all directions provides superior visibility when the viewer is not directly in front of the screen
- 400 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
- 400:1 ratio of contrast between black and white luminance values with response rates less than 25 ms results in excellent quality for moving images
- 4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats
- Works with all SMPTE/ITU serial digital production formats and frame rates
- Blue Gun for color adjustment
- Ready to mount in 19 inch rack out of the box
- Three color, self-powered tally system provided for each panel
- Built-in Color Bar Generator
- Standard inputs:
- HDSDI (all formats)
- SDI (ITU-R BT601 format)
- Composite Video PAL/NTSC
- Y/C (S-Video)
- Component Video YPrPb
- VGA to SXGA
- DVI-A and DVI-D
- Loop through of all input signals
- Zoom function
- Built in Color Bars
- 6 Frame Marker Overlays with Center Mark
- Easy to see three color tally indicators
- Adjustment Settings Memory
- Calibrated Color Temperature and Gamma
|
SPECIFICATIONS - MARSHALL V-R842P-AFHD RACK MOUNT LCD PANEL:
- Number of Screens 2 with Antiglare surface treatment
- Display (Viewing Area) 8.4" (6.14"H x 3.27"V)
- Resolution (RGB Dots) 1024H×RGB x768V (2.4 million RGB pixels) (16.7 Million colors)
- Viewing Angles 170° H x 170° V
- Dot Pitch / Pixel Pitch 0.0555 mm (W) x 0.1665 (H) / 0.1665 Square pixel
- Contrast Ratio 400:1
- Pixel Response <25ms
- Brightness 400 d/m²
- Pixel Response <25ms
- System NTSC/PAL auto recognition for standard definition signals
