Marshall V-RD151P
15 inch LCD Rack Mountable Panel In Drawer
Our Price $1699.99 Including 3 - 5 Day Shipping
Back to
Marshall Rack Mount LCD Monitors |
|
|

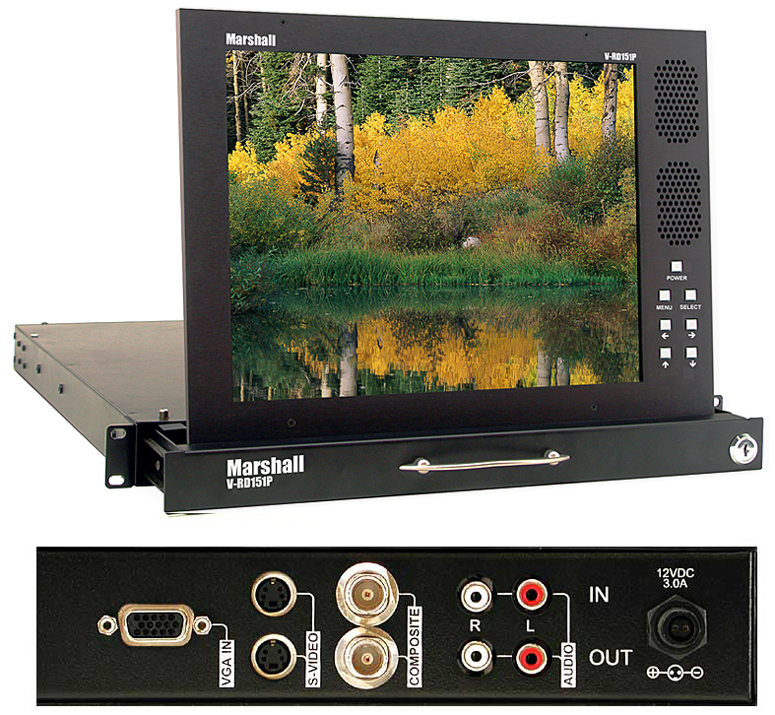

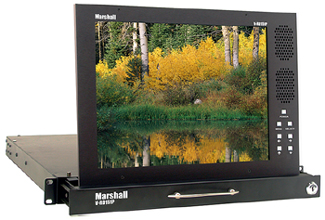

 Click For Larger Image |
MARSHALL V-RD151P 15 inch LCD Rack Mountable Panel In Drawer |
OVERVIEW - Marshall vrd151p 15 inch LCD Rack Mountable Panel In Drawer:
Save rack space with our monitor in a drawer model V-RD151P. A high-resolution 15" active matrix TFT display features CRT style viewing angles and is designed to collapse into a single 1RU high (1.75-inch) space when not in use. This model is often used in remote, ENG and EFP vehicles as a video and audio program monitor and provides large screen viewing of a video feed to a satellite uplink or for use with a laptop editing system.
XGA/VGA, Y/C (S-Video) and composite inputs are provided along with stereo audio. All connections are accessed from the rear of the drawer enclosure and include loop through for each signal. When the display is closed into the drawer, a keyed lock is provided for secure transport. Power supply and owners manual are included. |
FEATURES - Marshall
VRD151P 15 inch Rack Mount LCD Panel In Drawer:
- High Resolution 1024 × 768 pixels, 786,432 total
- Bright 250 candle luminance
- Video and S-video inputs per monitor with 75W termination and active loop through feature
- Ultra-compact design fits in EIA standard rack 1U high
- Built-in Speakers
- NTSC/PAL auto recognition
- Key lock for secure transportation
|
SPECIFICATIONS - MARSHALL V-RD151P RACK MOUNT LCD PANEL:
- Display (Viewing Area) 15.1" (11.69" × 9.12")
- Resolution (Pixels) 1024 H × 768 V
- Dot Pitch 0.297mm × 0.302mm
- Brightness (in cd/m²) 250 cd/m²
- System NTSC/PAL auto recognition
- Inputs VIDEO: 1 S-Video, 1 Composite, 1 XGA AUDIO: 2 Unbalanced RCA, 1 RF Stereo pair (TV)
- Dimensions 19.12"W x 1.75"H x 22"D
- Approx. weight 24 lbs
- Power Consumption 12 VDC, 2.0 Amps
Manufacturer Homepage: www.lcdracks.com
|
