Marshall OR701A High-End 7 inch Dual Input Audio and Video Monitor with Stereo Speakers

KEY POINTS - Marshall or701a high-end 7 inch dual input audio and video monitor with stereo speakers:

SUMMARY - Marshall or701a High-End 7 inch Dual Input Audio and Video Monitor with Stereo Speakers:

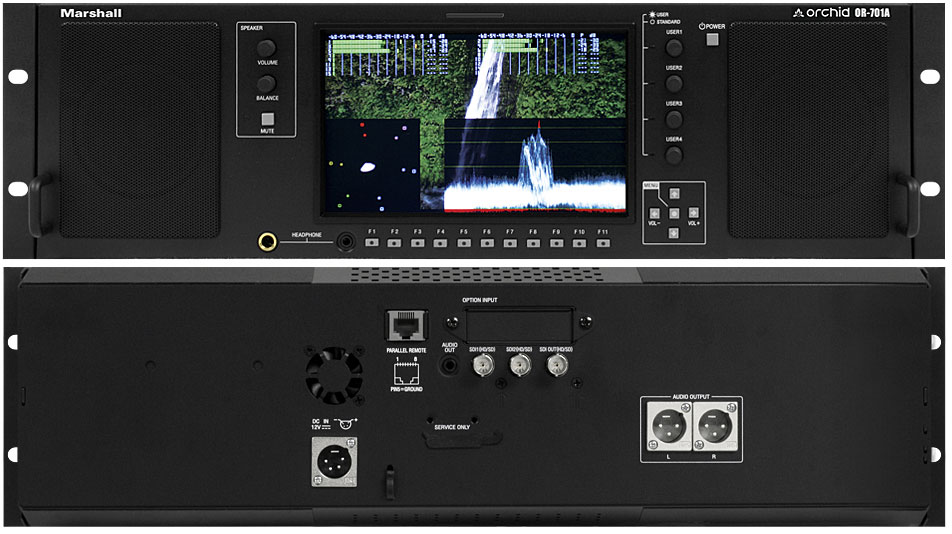

The Marshall OR-701A takes the same multi-function waveform and Vectorscope features found in Marshall's OR-702 and adds full range audio speakers and a new vertical audio bar layout for real-time audio monitoring. Any two of the sixteen audio channels being de-embedded from the HDSDI source may be monitored through the built-in full range speakers. The same audio is available from balanced XLR outputs on the rear panel, along with the two front panel headphone jacks (3.5mm and 1/4'). Each audio output has its own level control. The front panel speakers have Volume, Balance and Mute controls that operate separately from the rear panel line and front panel headphone outputs.

The Marshall OR701A is 3RU and has 11 user-assignable function keys as well as 4 user-assignable rotary encoders. This unit also utilizes a 5 button menu system. The built-in waveform monitor (which includes adjustable White and Black clip level indicators) can be displayed in three different aspect ratios including Full Screen. The built-in Vectorscope displays in full color and can also be displayed in three different ratios. The Vectorscope has adjustable gain from 1x to 5x. All screens are color matched at the factory and can be auto-adjusted in the field using an optional color probe system. The 64-segment tri-color bar graph meters have user-adjustable reference levels. The OR-701A comes standard with auto-sensing HDSDI inputs, re-clocked output, and an open modular slot for additional input options.

DETAILED SPECS - MARSHALL OR-701A HIGH-END 7 INCH DUAL INPUT AUDIO AND VIDEO MONITOR WITH STEREO SPEAKERS:
