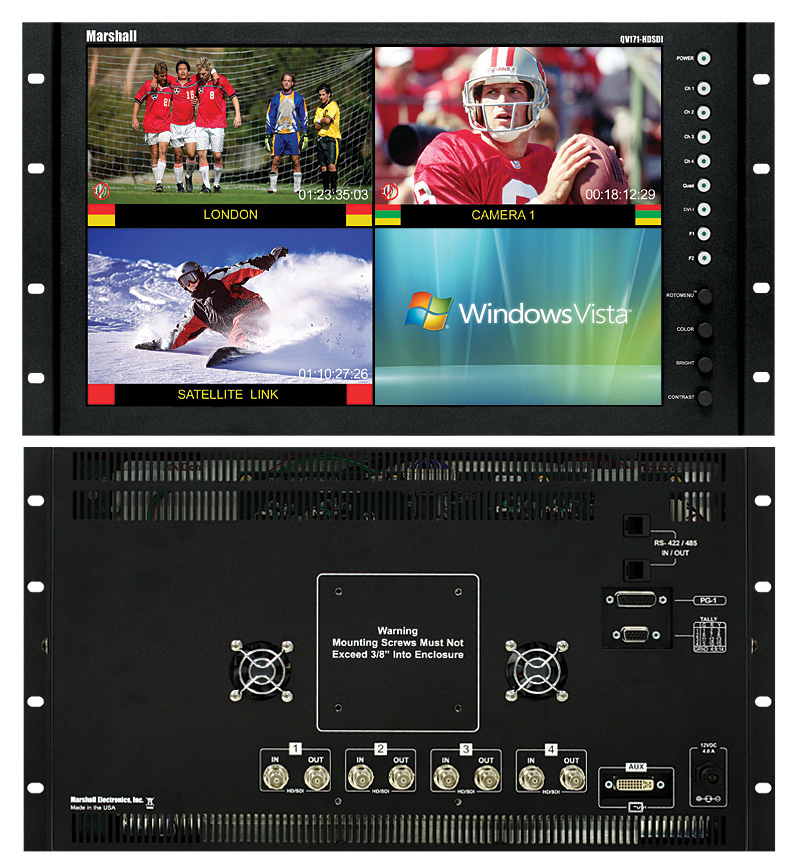

Marshall QV-171-HDSDI 17 inch LCD Rack Mount Quad Viewer Monitor with IMD

Our Price $3223.99 Including Shipping

Back to Marshall Rack Mount LCD Monitors

KEY POINTS - Marshall qv171hdsdi 17 inch lcd rack mount quad viewer monitor with imd:

Quad Viewer allows viewing of 4 different inputs at once with 3 different layouts to choose from

No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth

Supports the following protocols: Image Video / NVISION / TSL / MEI

Full Resolution 1920 x 1200 display

New unique RotoMenu™ feature for fast, direct, and easy menu navigation

High resolution scaling / high quality deinterlacing

Three-color on-screen "soft" tally indicators (Red / Green / Amber)

Three LED color tally indicators (Red / Green / Amber)

On-Screen Audio Presence Indicator

On-Screen Video Time Code

RS-422 / 485 connection with loop-through for control communication / IMD functionality

Field upgradeable firmware capability via RS-422 / 485 port

Direct access for adjustments of brightness, contrast, and color

Multiple Frame Marker Overlays with Center Mark

Pixel-to-Pixel mode

Blue Gun for color adjustment

Adjustment Settings Memory

SUMMARY - Marshall qv171hdsdi 17 inch LCD Rack Mount Quad Viewer Monitor with IMD:

The Marshall QV-171-HDSDI QUAD VIEWER Series is the latest addition to Marshall's line of IMD-equipped monitors. The QV171-HDSDI 17 inch Quad Viewer features a full resolution 1920 x 1200 LCD panel, built-in high quality HD Quad Splitter, four independent HDSDI inputs, one DVI-I input, IMD (In-Monitor Display) capability, Audio Presence indicator, and Time Code. Video and DVI-I both offer full screen mode, while quad-split mode is scaled to fit onscreen in the highest resolution. IMD and Tally are supported via manual mode, along with Image Video, NVISION, MEI (Marshall), and TSL protocols. Other features include Closed-Caption presence display, two front panel user-configurable function buttons, RS-422/485 port with pass-through, and field-upgradeable firmware.

DETAILED SPECS - MARSHALL QV-171-HDSDI 17 INCH LCD RACK MOUNT QUAD VIEWER MONITOR WITH IMD:

SPECIFICATIONS
Display (Viewing Area)	17" Diagonal (14.46" x 9.04") (367.2mm x 229.5mm)
Resolution (Pixels)	1920 x 1200
Viewing Angle	L/R: 140° U/D: 120°
Pixel Pitch (mm)	0.191(H) x 0.191(V)
Brightness (in cd/m²)	400
Contrast Ratio	600:1
System	NTSC/PAL auto recognition
Inputs	HDSDI x 4 / DVI-I x 1
Loop-through outputs	HDSDI
Dimensions	18.9" W x 10.45" H x 1.40" D (435.61 mm x 265.43 mm x 35.56 mm)
Approx. Weight	6.76 lbs.
Power Consumption	5.0A @ 12-17VDC, 60W Max

Manufacturer Page: www.lcdracks.com

marshall qv171hdsdi lcd rack display qv-171-hdsdi
