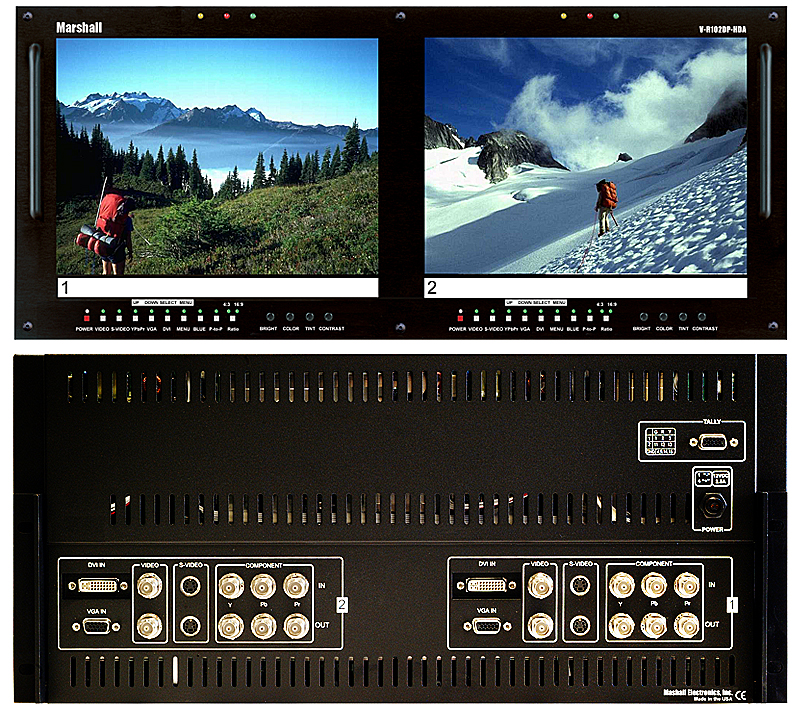

Marshall V-R102DP-HDA 10.4 inch Dual Rack Mount Monitor Set

Your Cost $2688.93 Including 3 - 5 Day Shipping

Return to Marshall LCD Rack Main

KEY POINTS - VR102DPHDA Marshall 10.4 inch Dual Rack Mount Monitor Set:

• Accepts analog HD and SD formats
• High Resolution 10.4-inch screen 800x600 Dots with 1.44 million RGB pixels
• 100% digital processing
• Hyper Process for Interlace Image
• Match Color Conversion
• 5 Year /50,000 hour backlight life
• 10 bit Analog to Digital conversion
• High resolution scaling
• Wide viewing radius - 130° horizontal and vertical provides superior visibility.
• 600 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions
• 500:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images
• 4:3 and 16:9 screen aspect ratios for DTV applications
• Response rates less than 25 ms
• Direct access for all adjustments
• Three color tally indicators
• Standard inputs:
  Component analog (YCrCb) (YPrPb) for all HD and SD formats Composite Video auto PAL/NTSC recognition S-Video (Y/C) DVI (Analog and Digital with HDMI/HDCP) PC up to SXGA (1280x1024) Loop through of all video input signals
• On Screen Display (OSD)
• Blue Screen for color adjustment
• Adjustment Settings Memory
• Under scan and HV Delay
• Ready to Rackmount out of the box

SUMMARY - Marshall vr102dphda 10.4 inch Dual Rack Mount Monitor Set:

Our V-R102DP-HDA 10.4-inch display provides up to 20% more viewing area than the competitors' 8.4-inch LCD or 8 and 9-inch CRT models yet occupies the same amount of space. Ready to rack mount in 5RU, this model is less weight and has lower power consumption than similar CRT and LCD products. The V-R102DP-HDA features our Award Wining Digital TFT-MegapixelT system plus Hyper Process motion compensation for interlace images. Inputs are provided for HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to SXGA resolution (1280x1024). Analog signals are digitized using an advanced 10 bit process, and all screen formats are scaled to fit on screen in the highest resolution using our proprietary program and state of the art LSI with Match Color Conversion to emulate SMPTE-C phosphor of a CRT.

DETAILED SPECS - MARSHALL V-R102DP-HDA 10.4 INCH DUAL RACK MOUNT MONITOR SET:

• Display (Viewing Area) 10.4 Inch diagonal (211.2mm W x 158.4mm H)
• Resolution (Pixels) 800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)
• Dot Pitch .264mm square pixel
• Brightness (in cd/m²) 600 cd/m²
• Contrast Ratio 500:1
• System NTSC/PAL auto rec
• Inputs per panel (total) 1 (2) Composite, 1 (2) S-Video (Y/C), 1 (2) Component, 1 (2) DVI, 1 (2) PC-SXGA (1280 x 1024)
• Dimensions 19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm)
• Approx. Weight 7.2 lbs (3.27 kg)
• Power Consumption App. 50Watt (5Amp 12 VDC Class 2 power supply included)

Manufacturer Link: www.lcdracks.com
