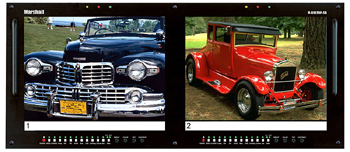

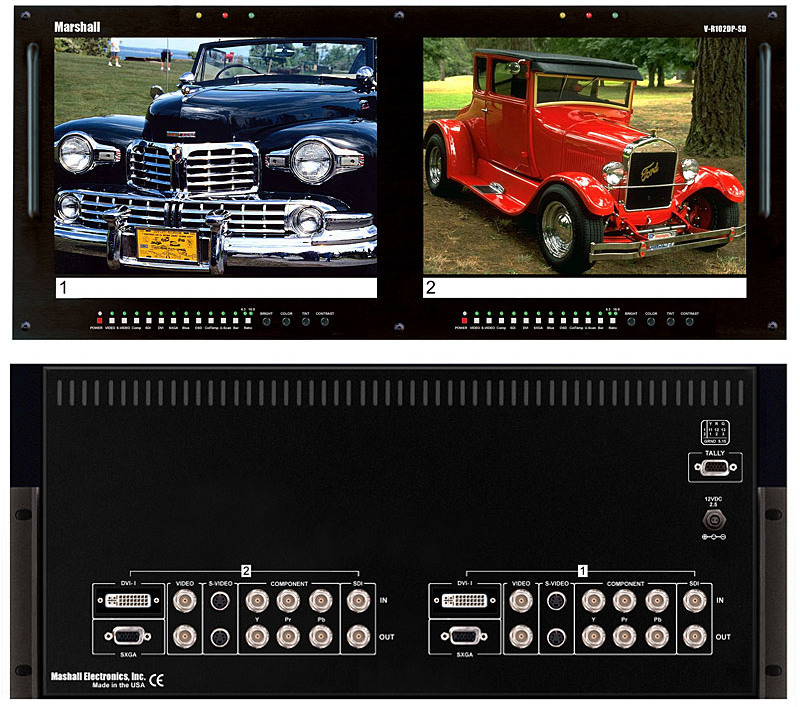

Marshall VR102DPSD Rack Mount Lcd Monitor marshall v-r102dp-sd

KEY POINTS - VR102DPSD Marshall TFT-MegaPixel SDI Multiformat Dual Screen 10.4-Inch Monitor Set:

Large 10.4-inch screens 800x600 Dots (1.44 million RGB pixels)

Hyper Process for Interlace Image

Match Color Conversion

Adjustable Color Temperature

5 Year /50,000 hour backlight life

10 bit Analog to Digital conversion

High resolution scaling

Wide viewing radius - 130° horizontal and vertical provides superior visibility.

600 candelas per square meter (cd/m2) luminance produces enhanced image quality in varying light and viewing conditions

500:1 ratio of contrast between black and white luminance values with response rates less than 30 ms results in excellent quality for moving images

4:3 and 16:9 screen aspect ratios for DTV applications

Response rates less than 25 ms

Direct access for all adjustments

Three color tally indicators

Standard inputs:

SDI (ITU-BR601/SMPTE-259M)
Component analog (YCrCb) (YPrPb) for all HD and SD formats
Composite Video auto PAL/NTSC recognition
S-Video (Y/C)
DVI (Analog and Digital with HDMI/HDCP)
PC up to SXGA (1280 x 1024)
Loop through of all video input signals

On Screen Display (OSD)

Blue Screen for color adjustment

Adjustment Settings Memory

Underscan

Ready to Rackmount out of the box

SUMMARY - Marshall vr102dpsd TFT-MegaPixel SDI Multiformat Dual Screen 10.4-Inch Monitor Set:

Our V-R102DP-SD provides up to 20% more viewing area than the competitors' 8.4-inch LCD or 8 and 9-inch CRT models yet occupies the same amount of rack space. Ready to rack mount in 5RU, this model is less weight and has lower power consumption when compared to similar CRT and LCD products.

The V-R102DP-SD features our Award Wining Digital TFT-MegapixelT system plus Hyper Process motion compensation for interlace images. Inputs are provided for SDI (Serial Digital Interface), HD or SD Component Analog, Composite, Y/C, DVI Analog or Digital from HDMI with HDCP, plus PC up to SXGA resolution (1280x1024).

Match Color Conversion

DETAILED SPECS - MARSHALL V-R102DP-SD TFT-MEGAPIXEL SDI MULTIFORMAT DUAL SCREEN 10.4-INCH MONITOR SET:

SPECIFICATIONS

Display (Viewing Area)

10.4 Inch diagonal (211.2mm W x 158.4mm H)

Resolution (Pixels)

800 Wide x 600 High (1.44 Million RGB Pixels)(262,000 colors)

Dot Pitch

.264mm square pixel

Brightness (in cd/m)

600 cd/m

Contrast Ratio

500:1

System

NTSC/PAL auto rec

Inputs per panel (total)

1 (2) SDI,
1 (2) Composite,
1 (2) S-Video (Y/C),
1 (2) Component,
1 (2) DVI,
1 (2) PC-SXGA (1280 x 1024)

Dimensions

19.24" w x 8.67" h x 1.5" d (485.7mm x 220.22mm x 38.1mm)

Approx. Weight

7.2 lbs (3.27 kg)

Power Consumption

App. 50Watt (5Amp 12 VDC Class 2 power supply included)

Marshall VR102DPSD TFT-MegaPixel SDI Multiformat Dual Screen 10.4-Inch Monitor Set
