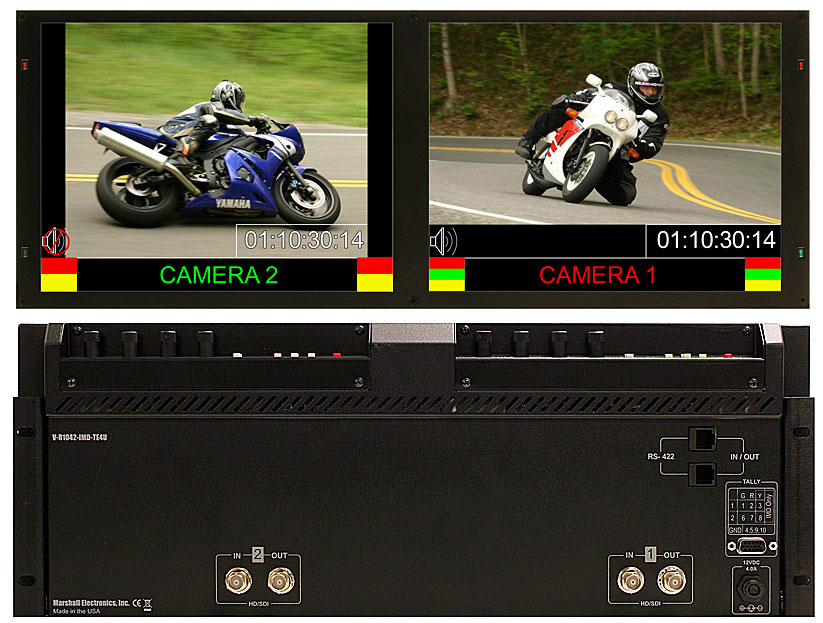

Marshall VR1042IMDTE4U Dual 10.4 inch Rack Mounted HD LCD Monitor with Built in IMD Function

Your Cost $3444.25 Including 3 - 5 Day Shipping

Return to Marshall Rack Mount LCD Monitor Page

KEY POINTS - VR1042IMDTE4U Marshall Dual 10.4 inch Rack Mounted HD LCD Monitor with Built in IMD Function:

• No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth
• Supports the following protocols: Image Video / NVISION / TSL / MEI
• High Resolution 1024 x 768 RGB Dots with 2.4 million pixels
• 16.7 million colors
• Industry's first and only dual 10.4 inch monitor set that fits in just 4RU rack space
• New unique RotoMenu feature for fast, direct, and easy menu navigation
• 5 Year / 50,000 hour backlight life
• High resolution scaling / high quality deinterlacing
• Ultra-wide viewing radius -- 170 degree horizontal and vertical provides superior visibility
• 300 cd/m² luminance produces enhanced image quality in varying light and viewing conditions
• 700:1 ratio of contrast between black and white luminance values
• Three-color on-screen "soft" tally indicators (Red / Green / Amber)
• Two LED color tally indicators (Red / Green)
• On-Screen Audio Presence Indicator
• On-Screen Video Time Code
• RS-422 / 485 connection with loop-through for control communication / IMD functionality
• Field upgradeable firmware capability via RS-422 / 485 port
• Built-in Color Bars
• Direct access for adjustments of brightness and contrast
• 6 Frame Marker Overlays with Center Mark
• Pixel-to-Pixel mode
• Blue Gun for color adjustment
• Adjustment Settings Memory

SUMMARY - Marshall vr1042imdte4u Dual 10.4 inch Rack Mounted HD LCD Monitor with Built in IMD Function:

Marshall Electronics introduces the industry's first full lineup of LCD panels with In-Monitor Display functionality. The new V-R1042-IMD-TE4U Truck Edition dual HD 10.4 monitor set is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator.

The new Marshall IMD displays also introduce our new RotoMenu feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI protocols. This 4RU unit also ships ready to rack mount and provides up to 20% more screen when compared to our competitors' LCD and CRT models that occupy the same space. This is in addition to the benefits of low weight and power consumption when compared to similar CRT products and separate Under Monitor Display configurations. The V-R1042-IMD-TE4U is a perfect solution for large Video Wall applications and systems. Each screen offers a single HDSDI/SDI input with active loop-through capability.

Additional features include ultra-wide viewing angles, adjustment settings memory, Zoom function, 6 Frame Marker Overlays, built-in Color Bars, Pixel-to-Pixel mode, Blue Gun, and direct access for adjustment and selection functions. Can also be used as standalone displays with HDSDI loop-through.

DETAILED SPECS - MARSHALL V-R1042-IMD-TE4U RACK MOUNTED HD LCD MONITOR:

Manufacturer Link: www.lcdracks.com
