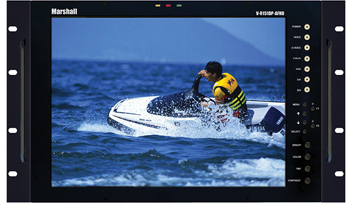

Marshall VR151DPAFHD Rack Mount Lcd Monitor marshall v-r151d-afhd

KEY POINTS - VR151DPAFHD Marshall 15 inch High Definition LCD Rack Mount Panel with Advanced Features:

High Resolution 1024 x 768 RGB Dots with 2.4 million pixels

16.7 million colors

Wide viewing angles - 160-RL , 140 UD provides superior visibility when the viewer is not directly in front of the screen

Bright 500 candelas per square meter (cd/m) luminance produces enhanced image quality in varying light and viewing conditions

450:1 contrast ratio with response rates less than 23 ms results in excellent quality for moving images

4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats

Standard Multi-format inputs:

HDSDI (all formats)
SDI (ITU-R BT601 format)
Component Analog HD/SD
Composite Video PAL/NTSC
DVI-I (all formats)
SXGA (1280 x 1024) Computer input (HD-15)

Built in Color Bars

6 Frame Marker Overlays with Center Mark

Easy to see three color tally indicators

Adjustment Settings Memory

SUMMARY - Marshall vr151dpafhd 15 inch High Definition LCD Rack Mount Panel with Advanced Features:

Occupying only 6 SRU and weighing just 12 pounds, the V-R151DP-AFHD has a high resolution LCD display with 2.4 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop through on each connection for HDSDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multi-format connector for HD or SD analog component signals. For computer graphic applications, this unit also has a scalable SXGA input. Additional features include, setup memory, Zoom function, 6 Frame Marker Overlays and direct access for adjustment and selection functions. With an optional VESA adaptor this monitor can be wall or ceiling mounted. Instruction manual and universal power supply are included.

DETAILED SPECS - MARSHALL V-R151DP-AFHD 15 INCH HIGH DEFINITION LCD RACK MOUNT PANEL WITH ADVANCED FEATURES:

Display (Viewing Area)

15" (11.95" 8.98")

Resolution (Pixels)

1024 H X RGB X 768 V (2.4 million pixels) (16.7 million colors)

Dot Pitch

0.099 x 0.297 mm

Brightness (in cd/m)

500 cd/m

System

NTSC/PAL auto recognition

Screen Formats

640 x 480 - 59.94i, 60i, 29.97P,30P, 59.94P 60P
1280 x 720 - 23.97P, 24P, 25P, 29.97P, 30P, 59.94P, 60P
1920 x 1080 - 23.97P, 24P, 25P, 29.94P, 30P, 50i, 59.94i, 60i

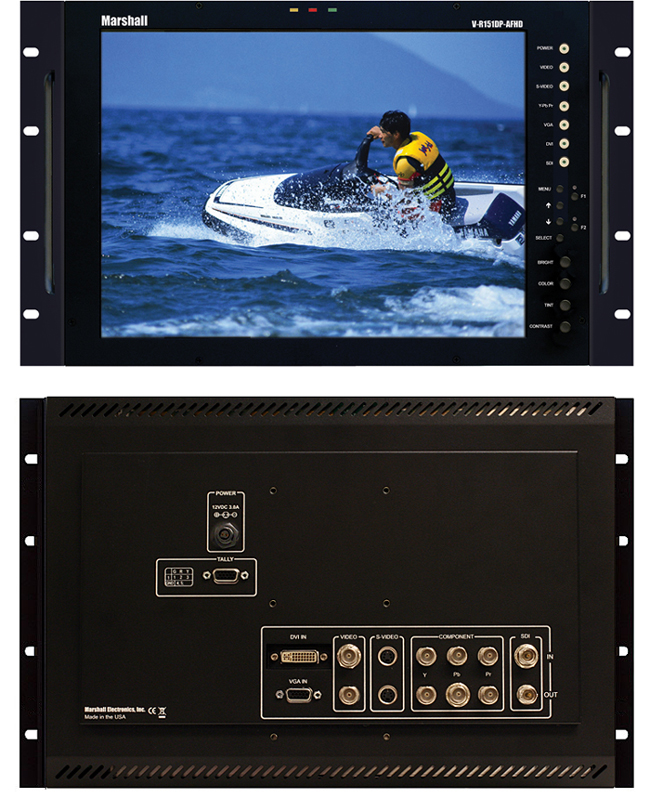

Inputs

HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, Y-Pr-Pb) 75W
BNC for HDSDI/SDI (PAL/NTSC) 75W
3 BNCs for Y-Pr-Pb / Y-Cr-Cb
DVI connector for DVI-I
BNC for Composite Video (PAL/NTSC) 75W with AGC
4 Pin Mini Din for S-Video (Y/C)

Dimensions

15.25" w x 10.5" h x 1.77" d (387.35mm x266.7mm x 38.1mm)

Approx. Weight

12 lbs

Power Consumption

12 VDC, 3.0Amps max - UL Class 2
