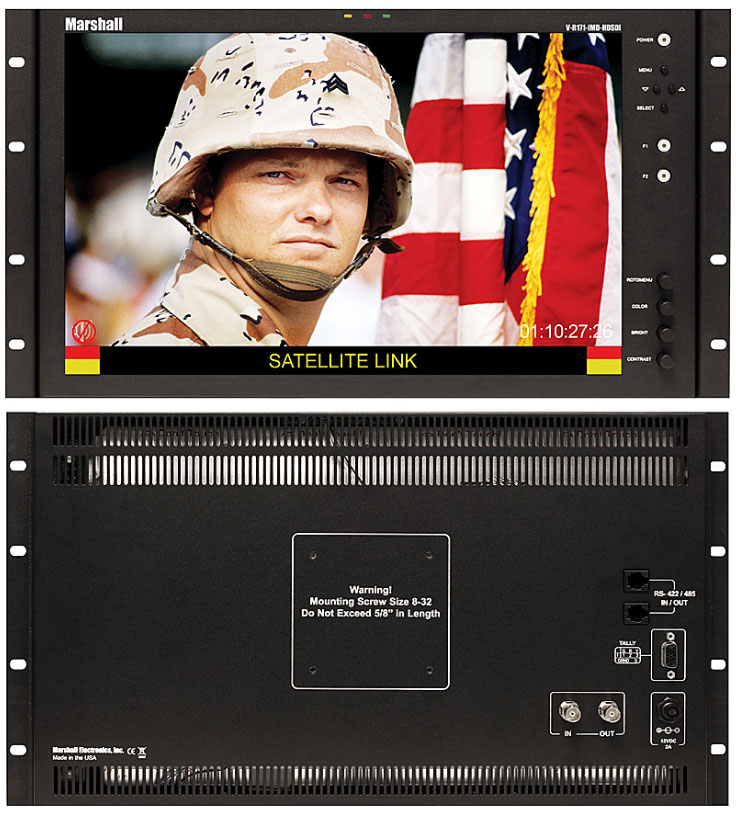

Click for Larger Image |
MARSHALL V-R171-IMD-HDSDI 17 inch HD Rack Mount LCD Monitor with IMD Function
|
OVERVIEW - Marshall
vr171imdhdsdi 17 inch HD Rack Mount LCD Monitor with IMD Function:
The new Marshall V-R171-IMD-HDSDI 17" LCD monitor
is a cost-effective "all in-one" solution for post production
houses, broadcasters, and mobile units. This fully-integrated
approach eliminates the need for additional or separate Under
Monitor Displays and allows UMD information and tallies to be
displayed directly within a Marshall flat panel monitor, while
saving precious rack space. A variety of features are readily
available including on-screen Video Time Code, three-color "Soft"
Tallies, and Audio Presence Indicator. The new Marshall IMD displays
also introduce our new RotoMenu feature which allows fast, direct,
and easy menu navigation. Marshall IMD monitors integrate easily
with existing Tally systems and controllers, including Image Video,
NVISION, TSL, and MEI protocols. This 6RU unit also ships ready to
rack mount and can be wall or ceiling mounted with an optional VESA
adapter.
|
FEATURES - Marshall VR171IMDHDSDI 17 inch HD Rack Mount LCD Monitor with IMD Function:
- No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth
- Supports the following protocols: Image Video / NVISION / TSL / MEI
- High Resolution 1920 x 1200
- New unique RotoMenu˛ feature for fast, direct, and easy menu navigation
- High resolution scaling / high quality deinterlacing
- Three-color on-screen "soft" tally indicators (Red / Green / Amber)
- Three LED color tally indicators (Red / Green / Amber)
- On-Screen Audio Presence Indicator
- On-Screen Video Time Code
- RS-422 / 485 connection with loop-through for control communication / IMD functionality
- Field upgradeable firmware capability via RS-422 / 485 port
- Built-in Color Bars
- Direct access for adjustments of brightness and contrast
- 6 Frame Marker Overlays with Center Mark
- Pixel-to-Pixel mode
- Blue Gun for color adjustment
- Adjustment Settings Memory
|
SPECIFICATIONS - MARSHALL V-R171-IMD-HDSDI
RACK MOUNT LCD MONITOR:
Display (Viewing Area) |
17" Diagonal (14.46" x 9.04") (367.2mm x 229.5mm) |
Resolution (Pixels) |
1920 x 1200 |
Viewing Angle |
L/R: 140°
U/D: 120° |
Pixel Pitch (mm) |
0.191(H) x 0.191(V) |
Brightness (in cd/m˛) |
400 |
Contrast Ratio |
600:1 |
System |
NTSC/PAL auto recognition |
Inputs |
HD/SDI |
Loop-through outputs |
HD/SDI |
Dimensions |
17.15"W x 10.45"H x 1.40"D (435.61 mm x 265.43 mm x 35.56 mm) |
Power Consumption |
12VDC 4.0A (power supply included) |
