Marshall V-R171P 17 inch Rack Mountable LCD Monitor

no longer available

Back to Marshall Rack Mount LCD Monitors

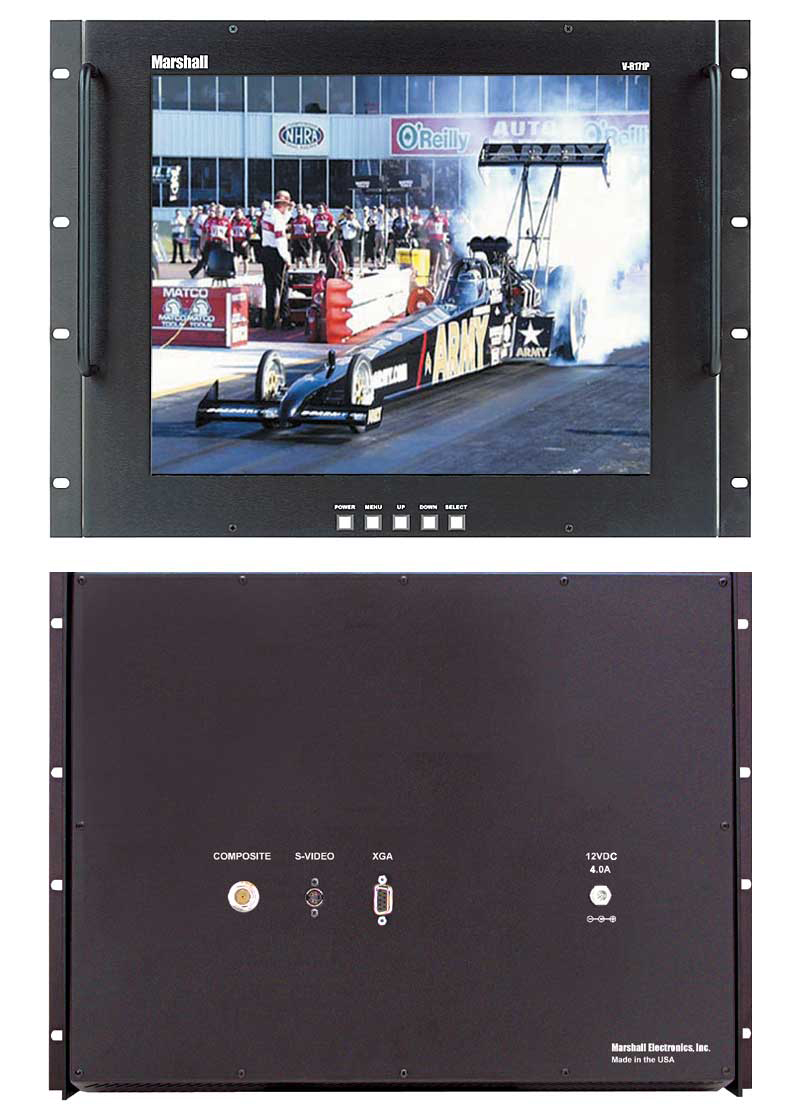

Click For Larger Image

OVERVIEW - Marshall vr171p 17 inch Rack Mountable LCD Monitor:

The Marshall V-R171P is a 17" high resolution (1280 x 1024) LCD panel capable of producing nearly 17 million colors. It accepts 1 composite video signal in either NTSC or PAL format. It also has an S-Video and an SXGA inputs for computer monitoring. On-screen menu parameters are available for input selection, 16:9 or 4:3 aspect ratio, color, tint, contrast and brightness adjustments. All V-R Series models are constructed of steel and aluminum, and can be tilted 90 degrees while rackmounted. The unit includes power supply and owners manual.

FEATURES - Marshall VR171P 17 inch Rack Mountable LCD Monitor:

• High Resolution LCD panel, 1280 x 1024 pixels, 1,310,720 total
• Unique Ultra Wide Viewing Angle LCD Panel, 170° in any direction
• Bright 250 candle luminance
• NTSC/PAL auto recognition
• Software driven 16:9 to 4:3 ratio switch
• HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter
• Compact design fits in EIA standard rack 8U high
• Unique 180 degree tilt adjustment while mounted in rack

SPECIFICATIONS - MARSHALL V-R171P RACK MOUNT LCD MONITOR:

• Display (Viewing Area) 17" (13.30" × 10.64")
• Resolution (Pixels) 1280H × 1024V
• Dot Pitch 0.264mm × 0.264mm
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto recognition
• Inputs 1 S-Video, 1 Composite, 1 SXGA
• Dimensions 19.125"W × 13.80"H × 2.5"D
• Approx. Weight 12.5 lbs
• Power Consumption 12 VDC, 2.0 Amps

Manufacturer Homepage: www.lcdracks.com
