Marshall VR171P4A 17 Inch Rack Mountable LCD Monitor

Your Cost $2898.95 Including 3 - 5 Day Shipping

Return to Marshall LCD Rack Main

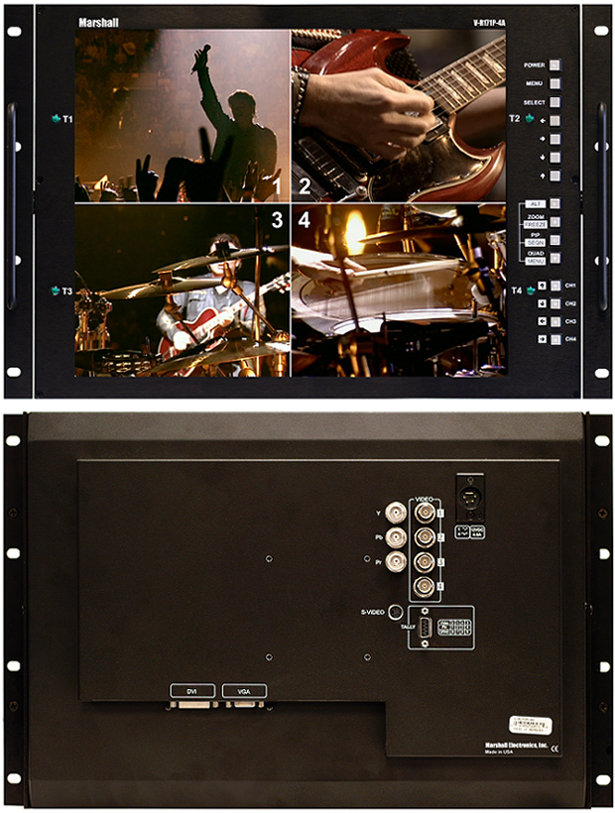

Marshall VR171P4A LCD Rack Mount Monitor

Click to Enlarge Image

MARSHALL VR171P4A 17 Inch Rack Mountable LCD Monitor

KEY POINTS - VR171P4A Marshall 17 Inch Rack Mountable LCD Monitor:

High Resolution LCD panel: 1280 x 1024 pixels (1,310,720 total)
Unique Ultra Wide Viewing Angle LCD Panel: 170 degrees in any direction
Bright 250 candle luminance
Built-in Quad Splitter/Sequential Switcher
Software driven 16:9 to 4:3 ratio switch
HDTV ready, will accept 1080i/720p signal with optional HD to VGA converter
Compact design fits in EIA standard rack 8U high
Unique 180 degree tilt adjustment while mounted in rack
Available in NTSC or PAL format

SUMMARY - Marshall vr171p4a 17 Inch Rack Mountable LCD Monitor:

The V-R171P-4A from Marshall is a 17-inch LCD rack mounted unit that features a built-in Quad Splitter with Sequential Switcher. This high resolution LCD panel has a pixel count 1280 x 1024, capable of producing nearly 17 million colors, and fits in a standard 19-inch rack 8U high. The Quad Splitter allows all of the four channels to appear on the monitor simultaneously either using the full screen or picture-in-picture mode. Other features include digital freeze and zoom functions as well as 16:9 aspect ratio via an on screen menu. For added flexibility, this unit can accommodate 4 composite video, 1 S-Video or 1 SXGA for computer monitoring (S-Video and SXGA inputs are only available in full screen mode). The unit includes power supply and owners manual.

DETAILED SPECS - MARSHALL VR171P4A 17 INCH RACK MOUNTABLE LCD MONITOR:

Display (Viewing Area)	17-inch (13.30 × 8.75 inches)
Resolution (Pixels)	1280H × 1024V
Dot Pitch	0.264mm × 0.264mm
Brightness (in cd/m²)	250
System	NTSC - V-R171P-4 PAL - V-R171P-4-PAL
Inputs	1 S-Video, 4 Composite, 1 SXGA
Dimensions (W x H x D)	19.125 × 13.80 × 2.5 inches
Approx. Weight	13 lbs
Power Consumption	12 VDC, 3.0 Amps

Manufacturer Link: www.lcdracks.com
