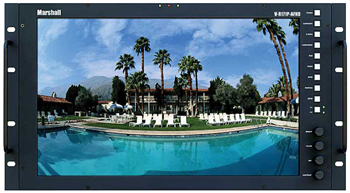

Marshall VR171PAFHD Rack Mount Lcd Monitor marshall v-r171p-afhd

KEY POINTS - VR171PAFHD Marshall 17 inch High Definition LCD Rack Mount Panel with Advanced Features:

High Resolution wide screen 1280 x 768 Dots with 2.95 million pixels

16.7 million colors

CRT style viewing radius - 170 in any direction provides superior visibility when the viewer is not directly in front of the screen.

Bright 450 candelas per square meter (cd/m²) luminance produces enhanced image quality in varying light and viewing conditions.

500:1 contrast ratio with response rates less than 23 ms results in excellent quality for moving images.

4:3 and 16:9 screen aspect ratios for DTV applications in HD and SD formats

Standard Multiformat inputs:

HDSDI (all formats)
SDI (ITU-R BT601 format)
Component Analog HD/SD
Composite Video PAL/NTSC
XGA Display Zoom function

Mono display (Black and White)

Built in Color Bars

6 Frame Marker Overlays with Center Mark

Easy to see three color tally indicators

Adjustment Settings Memory

SUMMARY - Marshall vr171pafhd 17 inch High Definition LCD Rack Mount Panel with Advanced Features:

Occupying only 6 SRU and weighing just 12 pounds, the V-R171P-AFHD has a high resolution LCD display with 2.95 million pixels. It includes our Universal Input configuration and does not require any adapter boxes or expensive options. Standard inputs include active loop through on each connection for HDSDI/SDI, Y/C, and composite video with PAL/NTSC automatic recognition. There is also a multiformat connector for HD or SD analog component signals. For computer graphic applications, this unit also has a scalable XGA input. Additional features include, setup memory, Zoom function, 6 Frame Marker Overlays and direct access for adjustment and selection functions. With an optional VESA adaptor this monitor can be wall or ceiling mounted. Instruction manual and universal power supply are included.

DETAILED SPECS - MARSHALL V-R171P-AFHD 17 INCH HIGH DEFINITION LCD RACK MOUNT PANEL WITH ADVANCED FEATURES:

Display (Viewing Area)

17" (13.30" × 8.75 ")

Resolution (Pixels)

1280 H × 768 V (2.4 million pixels) (16.7 million colors)

Dot Pitch

0.105mm × 0.161mm

Brightness (in cd/m)

450 cd/m

System

NTSC/PAL auto recog.

Screen Formats

640 x 480 - 59.94i, 60i, 29.97P,30P, 59.94P 60P
1280 x 720 - 23.97P, 24P, 25P, 29.97P, 30P, 59.94P, 60P
1920 x 1080 - 23.97P, 24P, 25P, 29.94P, 30P, 50i, 59.94i, 60i

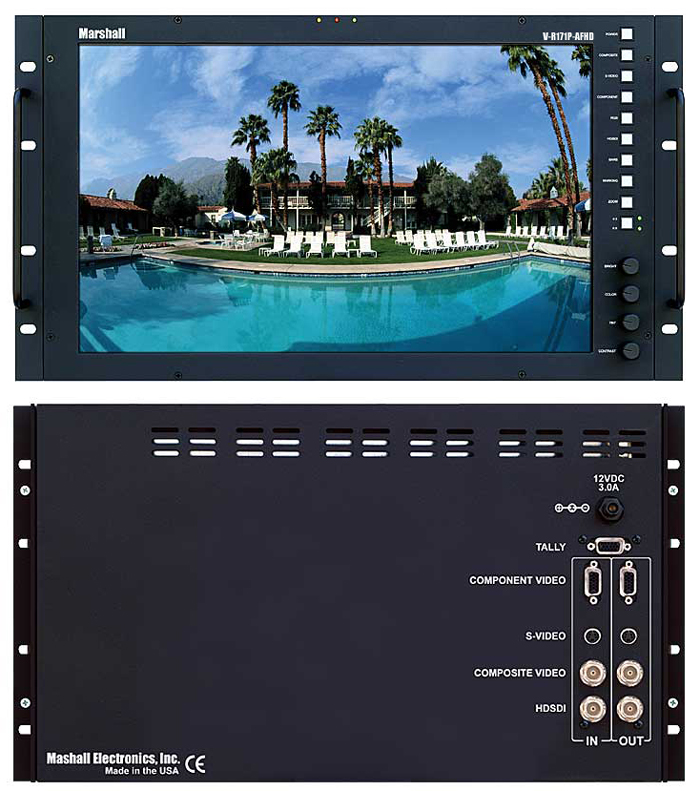

Inputs

HD-15 (VGA, SVGA, XGA, SXGA, RGBHV, YUV, Y-Pr-Pb) 75W
BNC for HDSDI/SDI (PAL/NTSC) 75W
BNC for Composite Video (PAL/NTSC) 75W with AGC
4 Pin Mini Din for S-Video (Y/C)

Dimensions

19.12"W x 10.50"H x 2.5"D

Approx. Weight

12 lbs

Power Consumption

12 VDC, 3.0Amps max - UL Class 2
