Marshall V-R171P-SDI 17 inch LCD Rack Mountable Panel with SDI Input

no longer available

Back to Marshall Rack Mount LCD Monitors

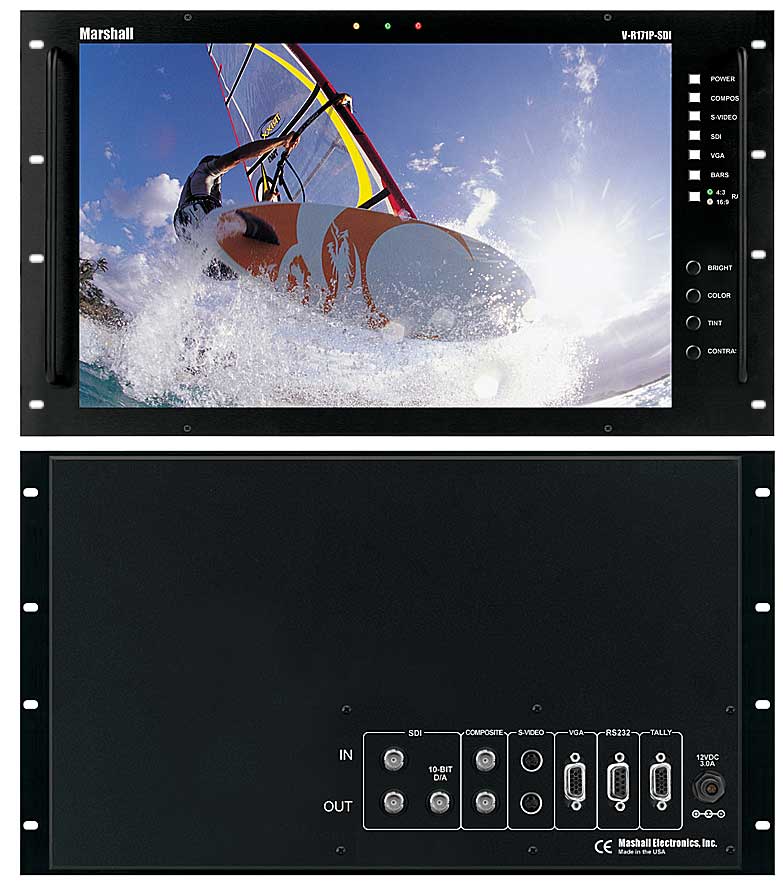

Click For Larger Image

OVERVIEW - Marshall vr171psdi 17 inch LCD Rack Mountable Panel with SDI Input:

The Marshall V-R171P-SDI is a 17" high resolution (1280 x 768) LCD panel. This unit can accommodate an SDI, composite video, or a S-Video signal with an active loop through for each. In addition to the digital and analog loop throughs, this unit also has a scalable VGA input and a 10-bit converted output from the digital input. It has front mounted buttons with LED indicators and controls for brightness, color, tint, and contrast. A ratio button allows the unit to switch between 16:9 and 4:3 ratios. The unit includes power supply and owners manual.

FEATURES - Marshall VR171PSDI 17 inch LCD Rack Mountable Panel with SDI Input:

• High Resolution LCD panel, 1280 x 768 pixels, 983,040 total
• Wide viewing angle, similar to CRT - 170° in any direction
• Ultra bright 450 candle luminance
• Ultra high 400:1 contrast ratio
• Switchable 16:9 and 4:3 ratios
• 1 composite video, S-Video and SDI with active loop through 1 VGA scalable input
• SDI Active loop through has active clock recovery with automatic 75Ohm termination
• High Resolution 10-bit SDI to composite video down converter built-in
• Three color, self-powered tally system provided for each panel

SPECIFICATIONS - MARSHALL V-R171P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 17" (13.30" × 10.63")
• Resolution (Pixels) 1280 H × 768 V
• Dot Pitch 0.105mm × 0.161mm
• Brightness (in cd/m²) 450 cd/m²
• System NTSC/PAL auto recog.
• Inputs 1 Composite, 1 S-Video, 1 SDI, 1 Scalable VGA
• Dimensions 19.12"W x 13.77"H x 2.5"D
• Approx. Weight 12 lbs
• Power Consumption 12 VDC, 3.0 Amps
