Marshall VR171XIMDHDSDI 17 inch 1920 x RGB x 1200 Rack Mount / Desktop Monitor with HDSDI/SDI input and In-Monitor Display features

Our Price $2358.99 Including Shipping

Back to LCD Rack Mount Monitors Main

KEY POINTS - Marshall vr171ximdhdsdi 17 inch 1920 x rgb x 1200 rack mount / desktop monitor with hdsdi/sdi input and in-monitor display features:

No need for external Under Monitor Display -- "all-in-one" In-Monitor Display solution without added depth

Supports the following protocols: Image Video / NVISION / TSL / MEI

High Resolution 1920 x 1200

New unique RotoMenuTM feature for fast, direct, and easy menu navigation

High resolution scaling / high quality deinterlacing

Three-color on-screen "soft" tally indicators (Red / Green / Amber)

Three LED color tally indicators (Red / Green / Amber)

On-Screen Audio Presence Indicator

On-Screen Video Time Code

RS-422 / 485 connection with loop-through for control communication / IMD functionality

Field upgradeable firmware capability via RS-422 / 485 port

Direct access for adjustments of brightness, contrast, and color

Multiple Frame Marker Overlays with Center Mark

Pixel-to-Pixel mode

Blue Gun for color adjustment

Adjustment Settings Memory

SUMMARY - Marshall vr171ximdhdsdi 17 inch 1920 x RGB x 1200 Rack Mount / Desktop Monitor with HDSDI/SDI input and In-Monitor Display features:

The Marshall V-R171X-IMD-HDSDI 17" monitor is a cost-effective "all-in-one" solution for post production houses, broadcasters, and mobile units. This fully-integrated approach eliminates the need for additional or separate Under Monitor Displays and allows UMD information and tallies to be displayed directly within a Marshall flat panel monitor, while saving precious rack space. A variety of features are readily available including on-screen Video Time Code, three-color "Soft" Tallies, and Audio Presence Indicator. The new Marshall IMD displays also introduce our new RotoMenuTM feature which allows fast, direct, and easy menu navigation. Marshall IMD monitors integrate easily with existing Tally systems and controllers, including Image Video, NVISION, TSL, and MEI (Marshall Electronics) protocols. This 6RU unit also ships ready to rack mount and can be wall or ceiling mounted with an optional VESA adapter.

DETAILED SPECS - MARSHALL V-R171X-IMD-HDSDI 17 INCH 1920 X RGB X 1200 RACK MOUNT / DESKTOP MONITOR WITH HDSDI/SDI INPUT AND IN-MONITOR DISPLAY FEATURES:

Display (Viewing Area)	17" Diagonal (14.46" x 9.04") (367.2mm x 229.5mm)
Resolution (Pixels)	1920 x 1200
Viewing Angle	L/R: 140° U/D: 120°
Pixel Pitch (mm)	0.191(H) x 0.191(V)
Brightness (in cd/m²)	400
Contrast Ratio	600:1
System	NTSC/PAL auto recognition
Inputs	HDSDI
Loop-through outputs	HDSDI
Dimensions	18.9" W x 10.45" H x 1.40" D (435.61 mm x 265.43 mm x 35.56 mm)
Approx. Weight	5.1 lbs.
Power Consumption	5.0A @ 12VDC

Manufacturer Page: www.lcdracks.com

marshall vr171ximdhdsdi lcd rack mount monitor v-r171x-imd-hdsdi

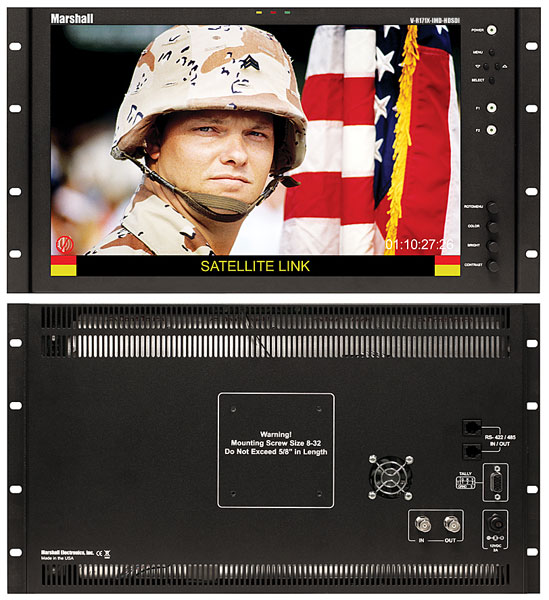

Click for Larger Image
