Marshall V-R18P 1.8 inch 8 LCD Screen Rack Mount Panel

no longer available

Back to Marshall Rack Mount LCD Monitors

Click For Larger Image

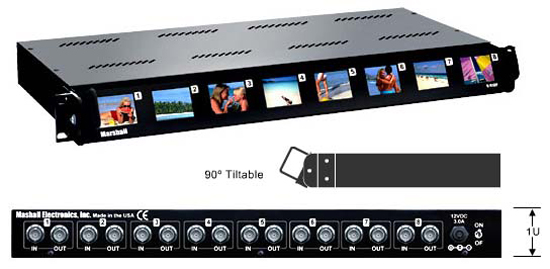

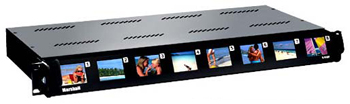

OVERVIEW - Marshall vr18p 1.8 inch 8 LCD Screen Rack Mount Panel:

The Marshall V-R18P offers eight high resolution 1.8-inch LCD color TFT displays in a single rack unit of space. Like all multiple screen display units from Marshall Electronics, the display face can be tilted up to 90 degrees to achieve the best viewing angle for your installation. This model has active loop features and includes universal voltage power supply.

FEATURES - Marshall VR18P 1.8 inch 8 LCD Screen Rack Mount Panel:

• Eight 1.8 inch displays
• Occupies only 1 RU
• Contrast Ratio - 200:1
• Active loop through
• Wide viewing angle
• Low power

SPECIFICATIONS - MARSHALL V-R18P LCD SCREEN RACK MOUNT PANEL:

• Display (Viewing Area) 1.8" (1.45" × 1.11")
• Resolution (Pixels) 280H × 220V
• Dot Pitch 0.132mm × 0.128mm
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto detect
• Inputs per panel (total) 1(8) Composite
• Dimensions 19.125"W × 1.64"H × 8.72"D
• Approx. Weight 6 lbs
• Power Consumption 12VDC, 3.0A

Manufacturer Homepage: www.lcdracks.com
