Marshall V-R18P-SDI 1.8 inch 8 LCD Screen Rack Mount Panel with SDI Input

Our Price $2663.99 Including 3 - 5 Day Shipping

Back to Marshall Rack Mount LCD Monitors

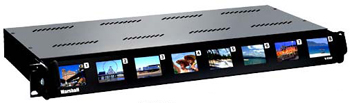

Click For Larger Image

OVERVIEW - Marshall vr18psdi 1.8 inch 8 LCD Screen Rack Mount Panel with SDI Input:

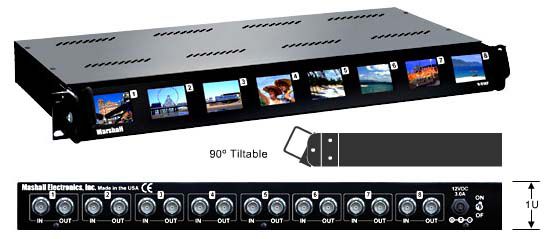

The Marshall V-R18P-SDI offers eight high resolution 1.8-inch LCD color TFT displays in a single rack unit of space. Like all multiple screen display units from Marshall Electronics, the display face can be tilted up to 90 degrees to achieve the best viewing angle for your installation. The V-R18P-SDI is the only eight-display rack mount monitor package available with SDI inputs. This model has active (reclocked) loop features and includes universal voltage power supply.

FEATURES - Marshall VR18PSDI 1.8 inch Rack Mount Lcd Panel with SDI Input:

• Eight 1.8 inch displays
• Occupies only 1 RU
• Contrast Ratio - 200:1
• Active loop through
• Wide viewing angle
• Low power

SPECIFICATIONS - MARSHALL V-R18P-SDI RACK MOUNT LCD PANEL:

• Display (Viewing Area) 1.8" (1.45" × 1.11")
• Resolution (Pixels) 280 H × 220 V
• Dot Pitch 0.132mm × 0.128mm
• Brightness (in cd/m²) 250 cd/m²
• System NTSC/PAL auto detect
• Inputs per panel (total) 1(8) SDi Serial Digital ITU-R BT601
• Dimensions 19.12"W × 1.64"H × 8.72"D
• Approx. Weight 6 lbs
• Power Consumption 12 VDC, 3.0 Amps

Manufacturer Homepage: www.lcdracks.com
